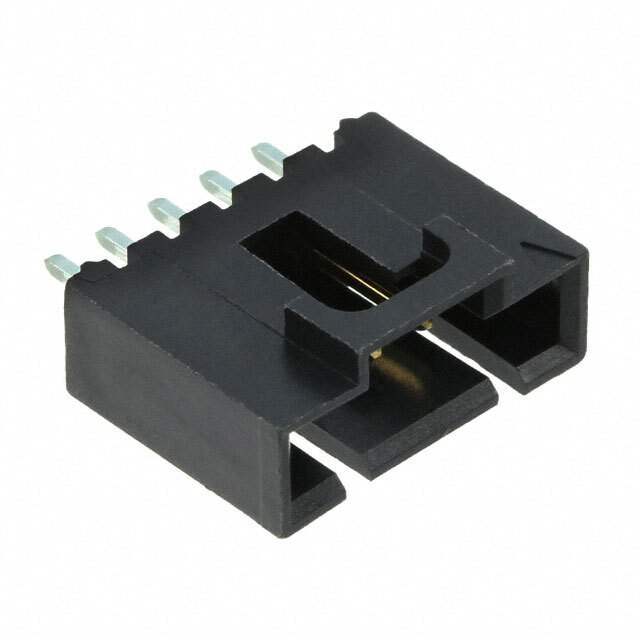

0705430004 Molex
Same model may have multiple batches, images only for reference.

0705430004

Part No 0705430004
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202654-0705430004
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Series SL 70543
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 0705430004 CAD Model

Description

The 1202654 is a header connector from Molex, designed for use in rectangular connector applications.

  • Positions: 5
  • Connector Type: Header
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.100" (2.54mm)
  • Series: SL 70543
