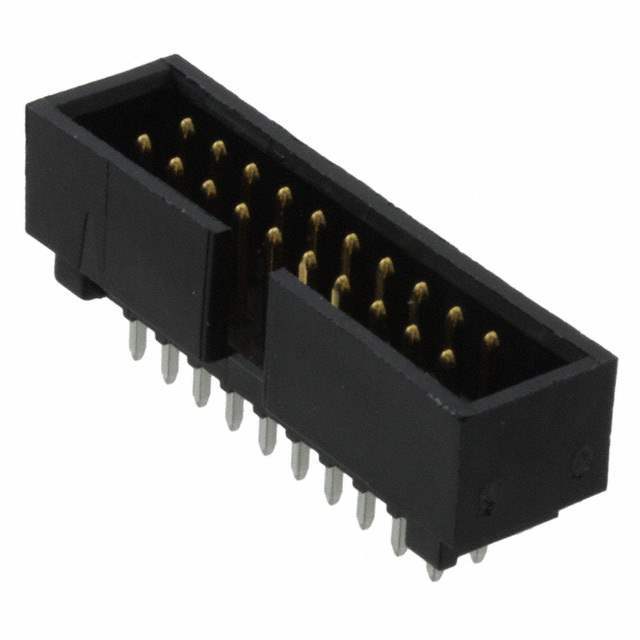

0702462001 Molex
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1207227-0702462001
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series C-Grid 70246
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 0702462001 CAD Model

Description

Connector Header Through Hole 20 position 0.100" (2.54mm)
