Same model may have multiple batches, images only for reference.

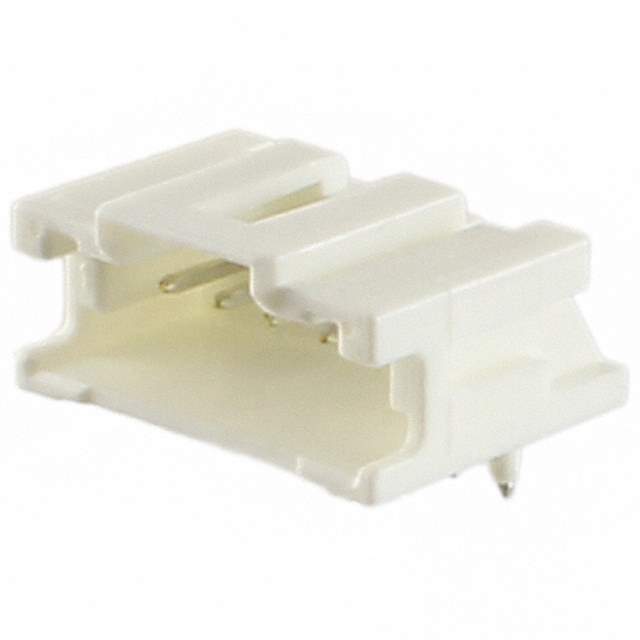

0559350510 Real Image
Same model may have multiple batches, images only for reference.

0559350510

Part No 0559350510
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 2MM / Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series MicroClasp 55935
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.144" (3.66mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.264" (6.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Natural
Applications General Purpose, Industrial, Medical
Base Product Number 055935
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856573-0559350510
Ultra Librarian 3D Model Ultra Librarian 0559350510 CAD Model

Description

The MicroClasp 55935 is a header connector with male pins, designed for various electronic applications and is manufactured by Molex, LLC.

  • Positions: 5
  • Features: Board Guide
  • Termination: Kinked Pin
  • Contact Type: Solder
  • Mounting Type: Through Hole, Right Angle
  • Package: Tray
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Pitch: 0.079" (2.00mm)
  • Product Status: Active
  • Applications: General Purpose, Industrial, and Medical
