0530150310

Name: 0530150310
Brand: Molex, LLC
SKU: 845942
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0530150310
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors

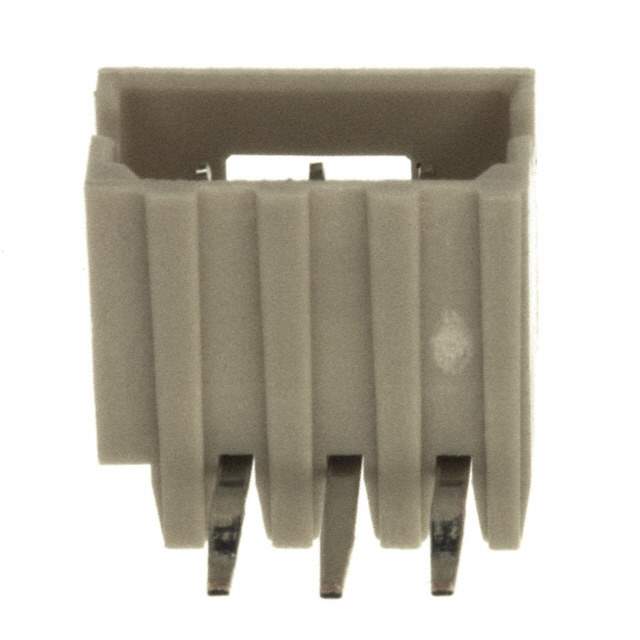

Description	CONN HEADER R/A 3POS 2MM / Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	MicroBlade 53015
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.079" (2.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.122" (3.10mm)
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.183" (4.65mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	35.4µin (0.90µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	White
Applications	General Purpose, Telecommunications
Base Product Number	053015
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	845942-0530150310
Ultra Librarian 3D Model	Ultra Librarian 0530150310 CAD Model

Description

The MicroBlade 53015 is a header connector with male pins from Molex, LLC.

Type: Rectangular Connector
Application: General Purpose and Telecommunications
Positions: 3
Lock Type: Detent Lock
Pin Type: Kinked Pin
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Flammability Rating: UL94 V-0
Pitch: 0.079" (2.00mm)
Mating Contact Finish: Tin
Mounting Orientation: Through Hole, Right Angle
Shrouding: 4 Walls
Contact Length: 0.122" (3.10mm)
Insulation Height: 0.183" (4.65mm)
Series: MicroBlade 53015
Package: Bulk
Standard Package: 1,000 pcs
