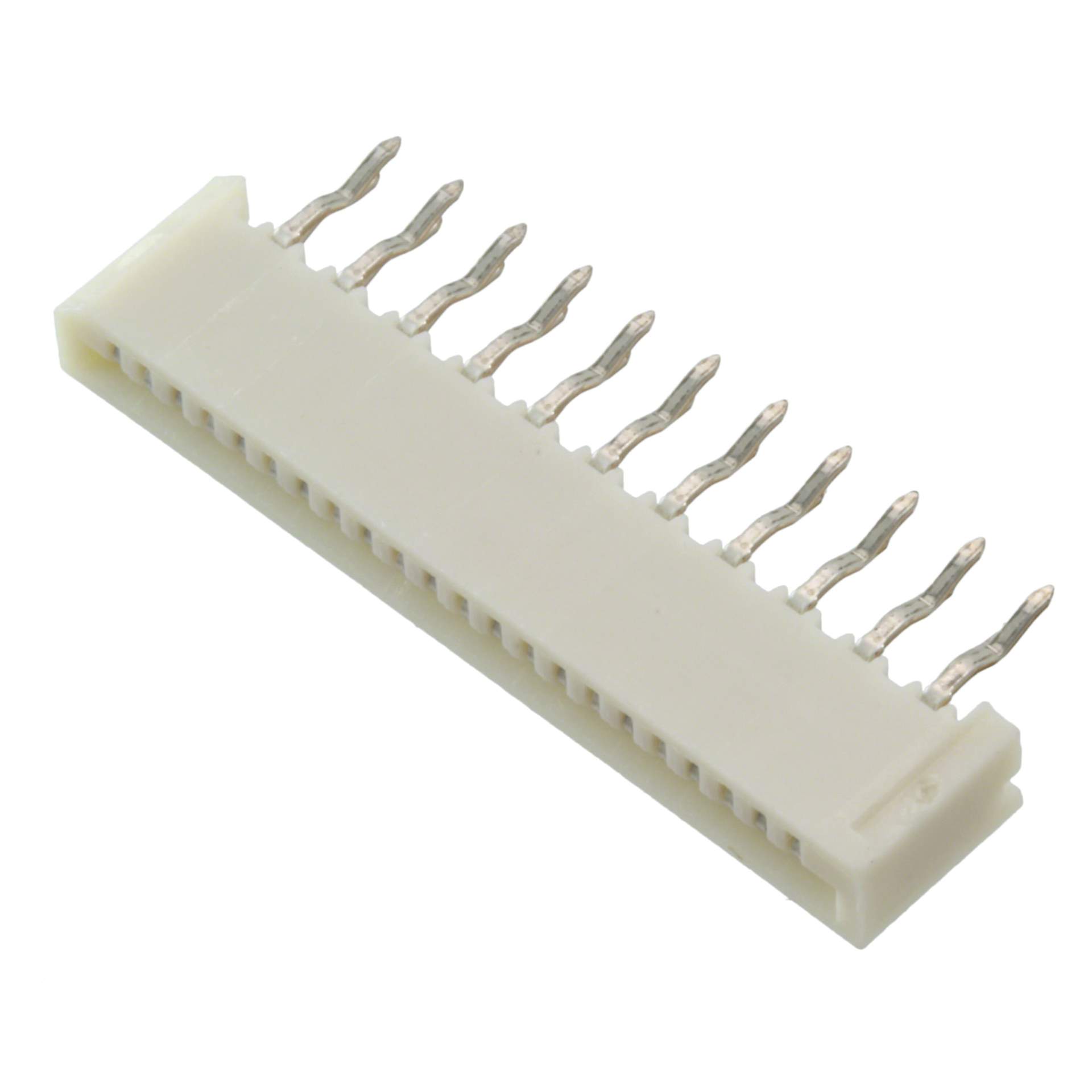

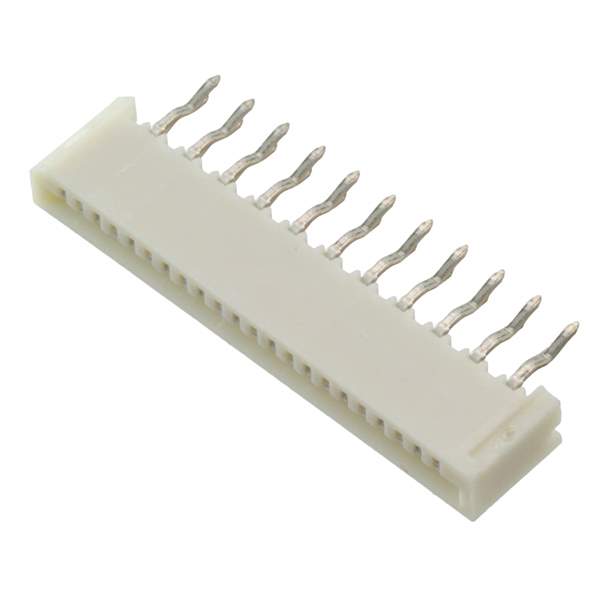

The 1380912-0528062210 is a 22-position FFC, FPC (Flat Flexible) Connector Assembly from Molex, LLC. It is part of the 52806 series and features a pitch of 0.039" (1.00mm). The connector has a kinked pin termination and a contact finish of tin. It is suitable for through-hole mounting and has a height above board of 0.213" (5.40mm). The housing material is made of polyphenylene sulfide (PPS), providing excellent strength and resistance to heat. The FFC, FPC Connector Assembly has a voltage rating of 50V and a current rating of 0.5A. It is suitable for a temperature range of -20°C to 80°C. The connector provides a reliable and secure connection, with its vertical 1-sided contacts.

• Series: 52806
• Number of Positions: 22
• Pitch: 0.039" (1.00mm)
• Termination: Kinked Pin
• Contact Finish: Tin
• Mounting Type: Through Hole
• Height Above Board: 0.213" (5.40mm)
• Housing Material: Polyphenylene Sulfide (PPS)
• Voltage Rating: 50V
• Current Rating: 0.5A
• Temperature Range: -20°C to 80°C
• Contact Orientation: Vertical 1-Sided
• Manufacturer: Molex, LLC
