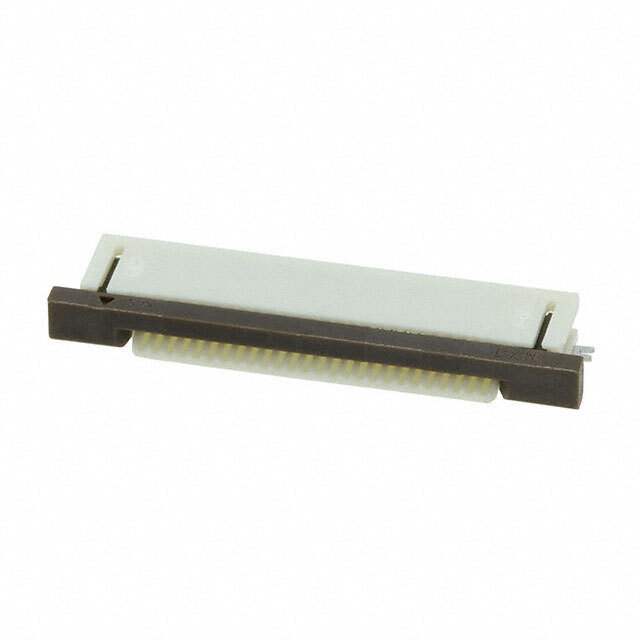

0524372671 Molex
Same model may have multiple batches, images only for reference.

0524372671

Part No 0524372671
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 26POS 0.5MM R/A
Datasheet
0524372671 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Part Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 26
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Ultra Librarian 3D Model Ultra Librarian 0524372671 CAD Model

Description

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, RightAngle, Bottom Contact, 2.00mm Height, 26 Circuits, Gold Plating
