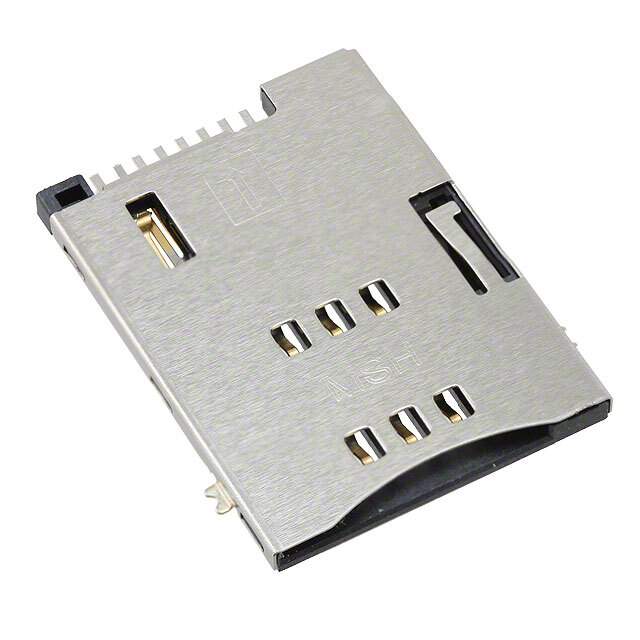

0475530001 Real Image
Same model may have multiple batches, images only for reference.

0475530001

Part No 0475530001
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN SIM CARD PUSH-PUSH R/A SMD / 8 (6 + 2) Position Card Connector SIM Card Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Molex, LLC
Series 47553
Package Tape & Reel
Product Status Active
Card Type SIM Card
Number of Positions 8 (6 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.071" (1.80mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 047553
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856131-0475530001
Ultra Librarian 3D Model Ultra Librarian 0475530001 CAD Model

Description

The 47553 series is a PC card socket connector designed for memory applications.

  • Application: Memory
  • Number of Positions: 8
  • Card Positions: 6
  • Switch Positions: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Package: Tape & Reel
  • Height Above Board: 0.071" (1.80mm)
  • Card Type: SIM Card
  • Insertion/Removal Method: Push In/Push Out
  • Mounting Feature: Normal, Standard - Top
  • Mounting Options: Surface Mount, Right Angle
  • Standard Package Quantity: 600 pieces
