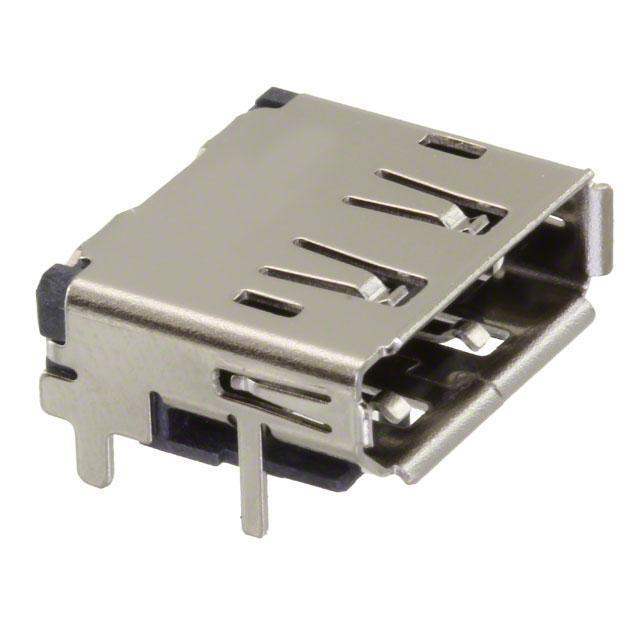

0472720001 Molex
Same model may have multiple batches, images only for reference.

0472720001

Part No 0472720001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT DISPLAYPORT 20P SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201118-0472720001
Manufacturer Molex
Category Connectors, Interconnects -USB, DVI, HDMI Connectors- USB, DVI, HDMI Connector Assemblies
Series 47272
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type DisplayPort
Number of Contacts 20
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Voltage - Rated 40VAC
Ultra Librarian 3D Model Ultra Librarian 0472720001 CAD Model

Description

The Molex 47272 is a DisplayPort connector assembly designed for use in USB, DVI, and HDMI applications.

  • Number of Contacts: 20
  • Material: Steel and Stainless Steel
  • Rated Voltage: 40VAC
  • Product Status: Active
  • Manufacturer: Molex
  • Applications: Computer Monitors, Televisions, and Audiovisual Equipment
