Same model may have multiple batches, images only for reference.

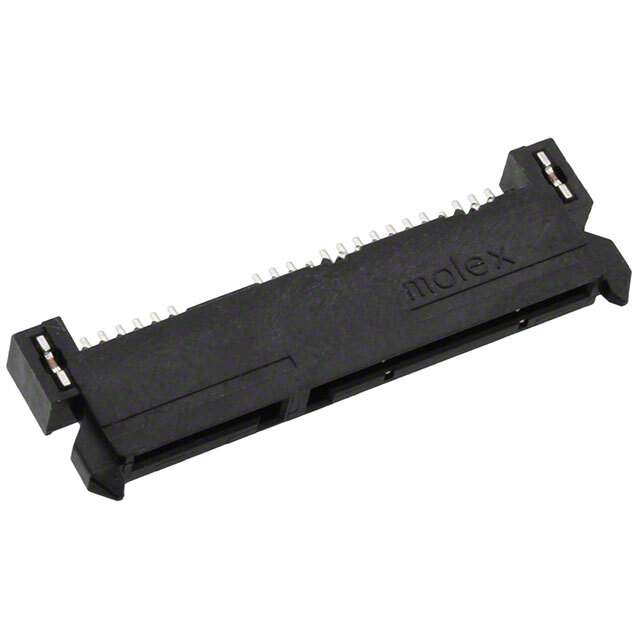

0470182001 Real Image
Same model may have multiple batches, images only for reference.

0470182001

Part No 0470182001
Manufacturer Molex, LLC
Catalog Pluggable Connectors
Description CONN SATA RCPT 22POS SLD R/A SMD / 22 Position SATA Receptacle Connector Solder Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors>Pluggable Connector Assemblies
Mfr Molex, LLC
Series 47018
Package Tray
Connector Style Receptacle
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 047018
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 210 pcs
Win Source Part Number 1380380-0470182001
Ultra Librarian 3D Model Ultra Librarian 0470182001 CAD Model

Description

The 1380380-0470182001 is a pluggable connector assembly from Molex, LLC.

  • Series: 47018
  • Positions: 22
  • Connector Type: SATA
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Package: Tray
  • Connector Style: Receptacle
  • Standard Package: 210 Pieces
  • Mounting Type: Surface Mount, Right Angle
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Board Lock: Yes
