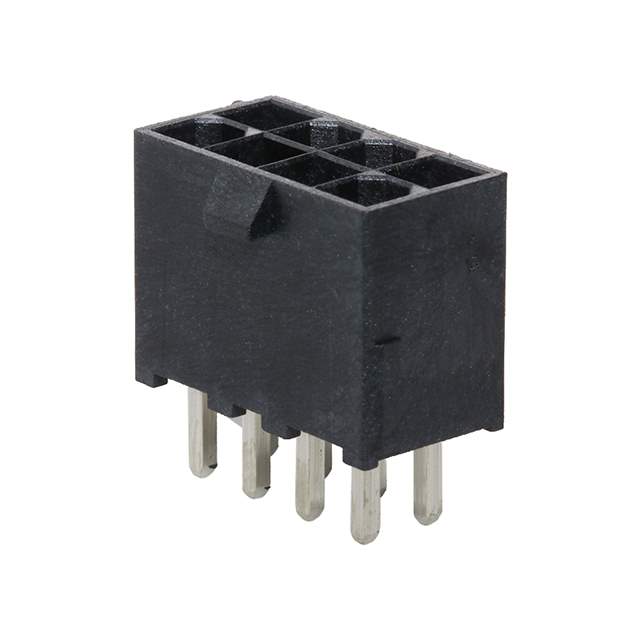

Same model may have multiple batches, images only for reference.

0462071208

Get a Quote

Part No	0462071208
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 4.2MM / Connector Header Through Hole 8 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	Mini-Fit Jr 46207
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.207" (5.26mm)
Overall Contact Length	-
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	-
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	046207
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,020 pcs
Win Source Part Number	1380377-0462071208
Ultra Librarian 3D Model	Ultra Librarian 0462071208 CAD Model

Alternative Products

Description

The Mini-Fit Jr 46207 series is a versatile header connector designed for use in various applications such as general purpose, industrial, and telecommunications.

Manufacturer: Molex, LLC
Positions: 8
Gender: Male
Number of Rows: 2
Loaded Positions: All
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: -
Flammability Rating: UL94 V-0
Mounting Type: Through Hole
Shrouded: 4-Wall
Pitch: 0.165" (4.20mm)
Contact Length: 0.207" (5.26mm)
Application: Board to Cable/Wire
Package: Tray
Standard Package: 1,020 pcs
