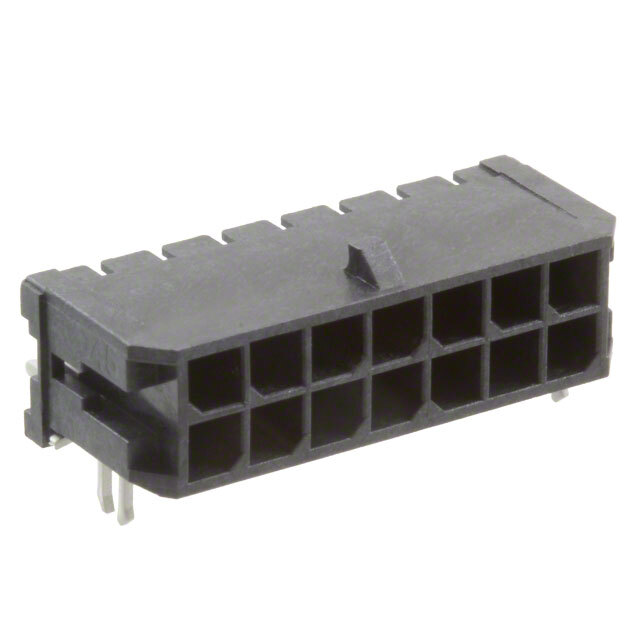

0430451408 Molex, LLC
Same model may have multiple batches, images only for reference.

0430451408

Part No 0430451408
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Right Angle, with Press-fit Metal Retention Clip, 14 Circuits | CONN HEADER SMD R/A 14POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120618-0430451408
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0430451408 CAD Model

Description

This electronic component is a connector manufactured by Molex with the Win Source Part Number: 1120618-0430451408.

  • Connector Type: Header
  • Number of Positions: 14
  • Packaging: Reel
  • Shrouded: 4 Wall
  • Mounting Type: SMT, right-angle
  • Features: Board lock
  • Contact Gender: Male pin
  • Positions Loaded: All
  • Number of Rows: Two
  • Voltage Rating: 600V
  • Pitch-Mating: 0.118" (3.00mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30.0μin (0.76μm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 100.0μin (2.54μm)
  • Insulation Material: Liquid crystal polymer (LCP), glass-filled
  • Insulation Color: Black
  • Category: Connectors, Interconnects
  • Board-to-Cable/Wire Style: Board-to-cable/wire
  • Applications: General-purpose, medical, military, and telecommunications
