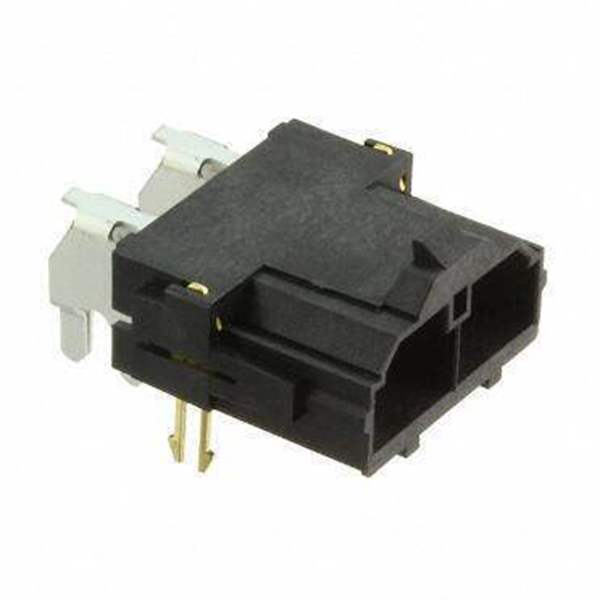

0428202214 Molex
Same model may have multiple batches, images only for reference.

0428202214

Part No 0428202214
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 10MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.394" (10.00mm)
Shrouding Shrouded - 4 Wall
Termination Solder
Fastening Type Locking Ramp
Win Source Part Number WS1208432-0428202214
Ultra Librarian 3D Model Ultra Librarian 0428202214 CAD Model

Description

This specification covers the 10.00 mm / (.394 in.) centerline tin and gold, silver plated connector series, single and dual row versions in wire to wire and wire to printed circuit board applications. This product performance is optimized for stranded tinned wire termination.
