Same model may have multiple batches, images only for reference.

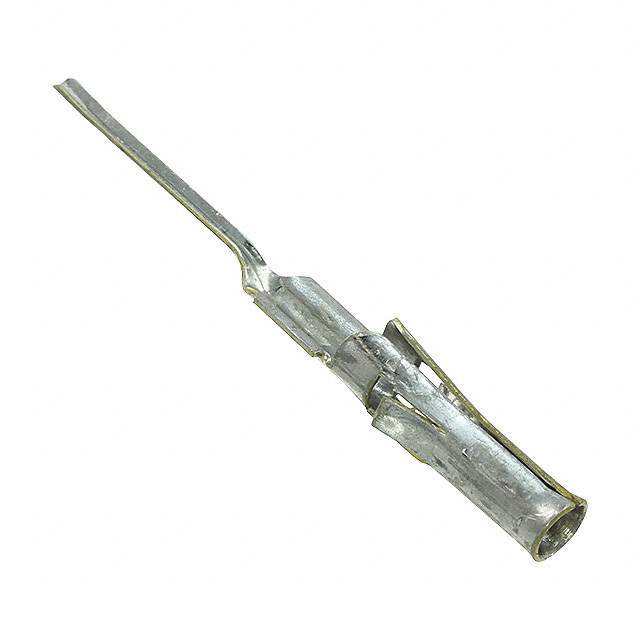

02-09-1134 Real Image
Same model may have multiple batches, images only for reference.

02-09-1134

Part No 02-09-1134
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN TERM FEMALE SOLDER-TAIL TIN / Contact SKT Solder ST Thru-Hole 14-30AWG Bag
Datasheet
02-09-1134 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series 1377
Packaging Bulk
Type Power
Pin or Socket Socket
Contact Termination Solder, PCB
Contact Finish Tin
Contact Finish Thickness 100μin (2.54μm)
Win Source Part Number 768626-02-09-1134
Popularity Medium
Supply and Demand Status Limited
Family Name 1377
Introduction Date May 17, 2010
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 02-09-1134 CAD Model

Description

The Molex Connector Corporation 768626-02-09-1134 is a power socket connector designed for use in electronic devices that require high-quality and reliable performance.

  • Popularity: Medium
  • Supply and Demand: Limited
