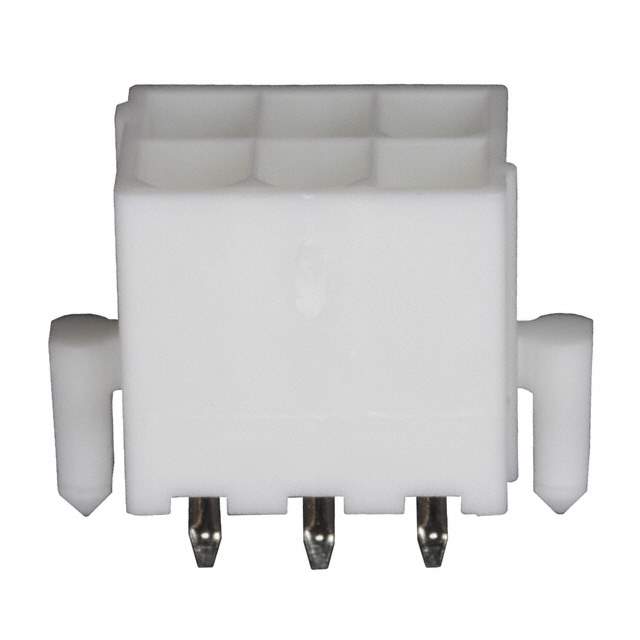

0039299066

Get a Quote

Part No	0039299066
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 4.2MM / Connector Header Through Hole 6 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	Mini-Fit Jr 5566
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	-
Insulation Height	0.504" (12.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	35.4µin (0.90µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Lock
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	35.0µin (0.90µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	003929
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1 pcs
Win Source Part Number	1380352-0039299066
Ultra Librarian 3D Model	Ultra Librarian 0039299066 CAD Model

Alternative Products

Description

The Mini-Fit Jr 5566 series header connector from Molex, LLC is a versatile connector for board to cable/wire applications.

Pitch: 0.165" (4.20mm)
Feature: board lock
Contact Material: brass
Mounting: through-hole
Product Status: active
