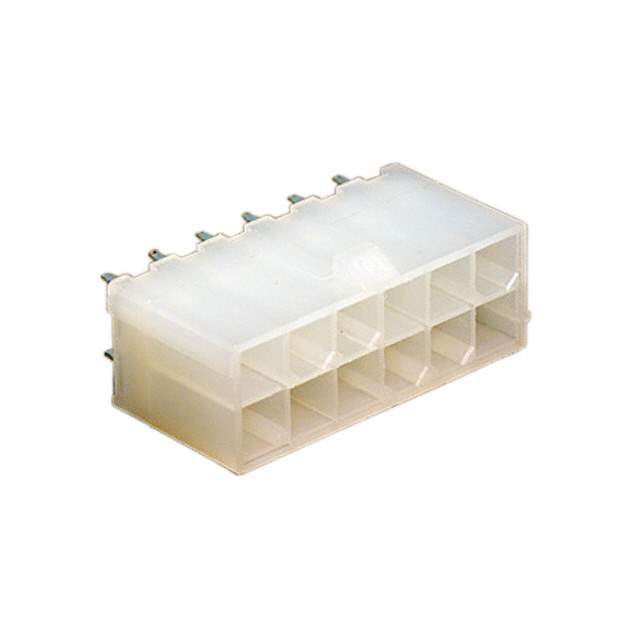

0039281123 Real Image
Same model may have multiple batches, images only for reference.

0039281123

Part No 0039281123
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 4.2MM / Connector Header Through Hole 12 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Mini-Fit Jr 5566
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003928
Standard Package 225 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855850-0039281123
Ultra Librarian 3D Model Ultra Librarian 0039281123 CAD Model

Description

The Mini-Fit Jr 5566 series is a 12-position male pin header connector designed for reliable and secure connections in electronic applications.

  • Series: Mini-Fit Jr 5566
  • Positions: 12
  • Contact Material: Brass
  • Applications: General Purpose, Industrial, Telecommunications
  • Mounting: Through-Hole
  • Pitch: 0.165" (4.20mm)
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Shrouding: Shrouded, 4 walls
  • Insulation Height: 0.504" (12.80mm)
  • Product Status: Active
  • Standard Package: 225 pcs
  • Fastening Type: Locking Ramp
