Same model may have multiple batches, images only for reference.

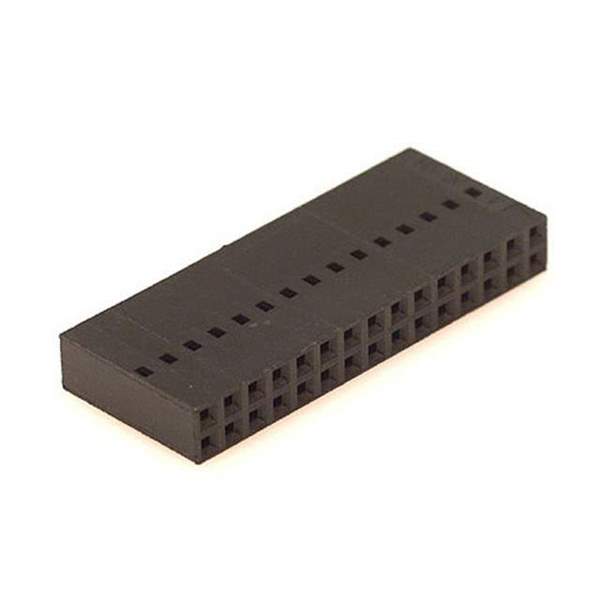

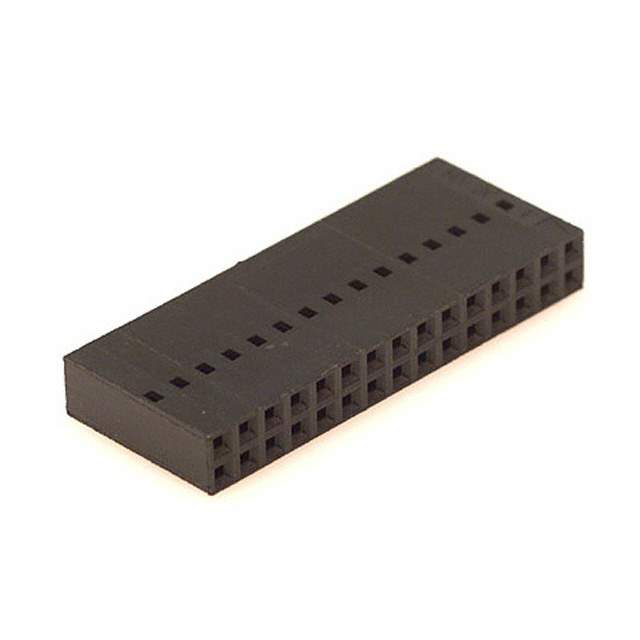

0022552301 Real Image
Same model may have multiple batches, images only for reference.

0022552301

Part No 0022552301
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 30POS 2.54MM / 30 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr Molex, LLC
Series SL 70450
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 30
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Temperature Range - Operating -40°C ~ 105°C
Note Contacts Not Included
Base Product Number 002255
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 848550-0022552301
Ultra Librarian 3D Model Ultra Librarian 0022552301 CAD Model

Description

The SL 70450 series is a set of rectangular connector housings designed for use in connectors and interconnects. These housings are receptacles with 30 positions and a pitch of 0.100" (2.54mm).

  • Connector Type: Receptacle
  • Positions: 30
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Crimp
  • Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Color: Black
  • Mounting Type: Free hanging (in-line)
  • Temperature Range: -40°C to 105°C
  • Manufacturer: Molex, LLC
  • Base Product Number: 002255
  • Contacts Included: No
  • Package: Bulk, 1 pc
