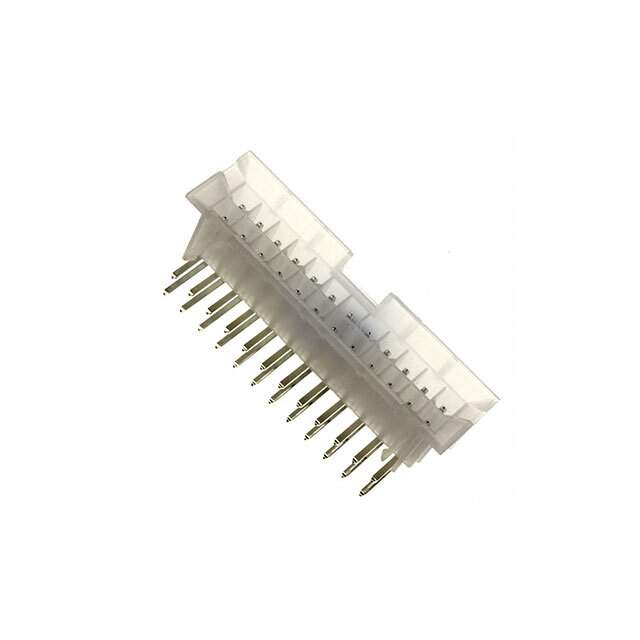

0015246240 Real Image
Same model may have multiple batches, images only for reference.

0015246240

Part No 0015246240
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 4.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 10 Weeks
Features Connector Header Through Hole, Right Angle 24 position 0.165" (4.20mm)
Manufacturer Molex, LLC
Series Mini-Fit BMI 42404
Package Tray
Mounting Through Hole, Right Angle
Family Name 15246
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0015246240-E, 15246240-E, 15246240, WM17721-ND, WM17721, 15-24-6240-E, 0015-24-6240-E, 0015-24-6240, A-42404-24A1, 23-0015246240, 15-24-6240
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905362-0015246240
Ultra Librarian 3D Model Ultra Librarian 0015246240 CAD Model

Description

The Molex LLC 905362-0015246240 is a right angle connector with 24 positions and through hole mounting. The pitch of this connector is 4.20mm and the estimated production lead time of this connector is 10 weeks. This connector is RoHS compliant and is suitable for connectors.
