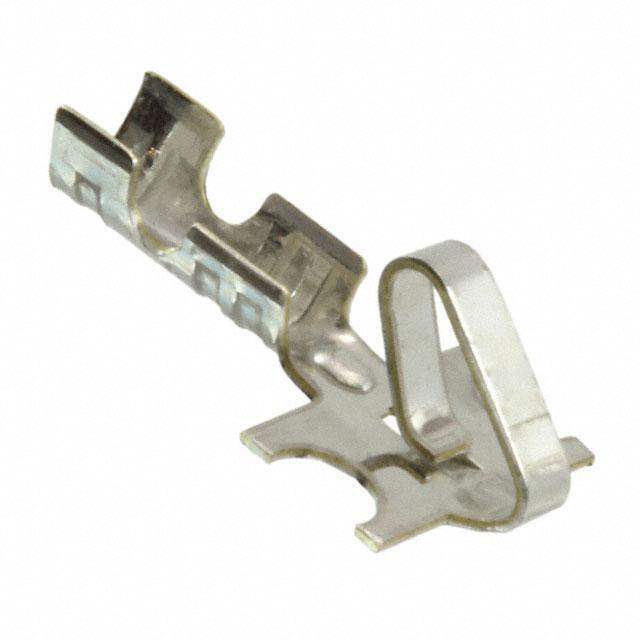

0008500113

Part No 0008500113
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN 22-30AWG CRIMP TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197437-0008500113
Manufacturer Molex
Category Connectors, Interconnects- Rectangular Connectors- Rectangular Connector Contacts
Series KK254, 2759
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Pin or Socket Non-Gendered
Contact Termination Crimp
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Ultra Librarian 3D Model Ultra Librarian 0008500113 CAD Model

Description

The KK254 and 2759 series rectangular connector contacts from Molex are high-quality connectors used for various electronic applications. These connectors are designed for easy and reliable connections, making them ideal for use in industries such as automotive, telecommunications, and consumer electronics. The contacts are packaged in a convenient tape and reel format, ensuring easy handling and storage. With their compact design and durable construction, these connectors provide excellent performance and reliability. Whether you are building a new electronic device or repairing an existing one, the KK254 and 2759 series rectangular connector contacts are a great choice for your connectivity needs.
