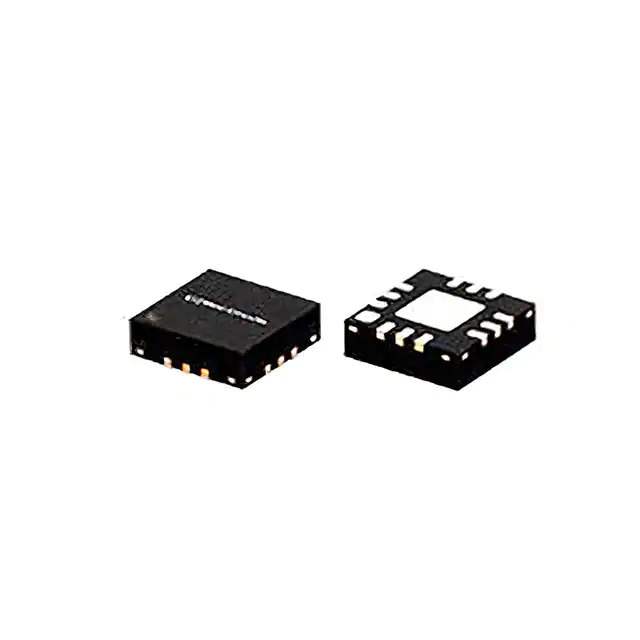

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 500MHz ~ 5GHz
P1dB 21dBm
Gain 18.7dB
Noise Figure 1.7dB
RF Type General Purpose
Voltage - Supply 4.8V ~ 5.2V
Current - Supply 82mA
Test Frequency 2GHz
Mounting Type Surface Mount
Package / Case 12-VQFN Exposed Pad
Supplier Device Package 12-MCLP (3x3)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 720964-TSS-53LNB+
Ultra Librarian 3D Model Ultra Librarian TSS-53LNB+ CAD Model

Description

The 720964-TSS-53LNB+ is an RF amplifier designed for RF and wireless applications.

  • Frequency Range: 500MHz to 5GHz
  • Gain: 18.7dB
  • Noise Figure: 1.7dB
  • Supply Voltage: 4.8V to 5.2V
  • Current Consumption: 82mA
  • Package: 12-VQFN exposed pad
  • Status: active product in Mini-Circuits' RF amplifier lineup
  • Standard Package: 2,000 pcs
