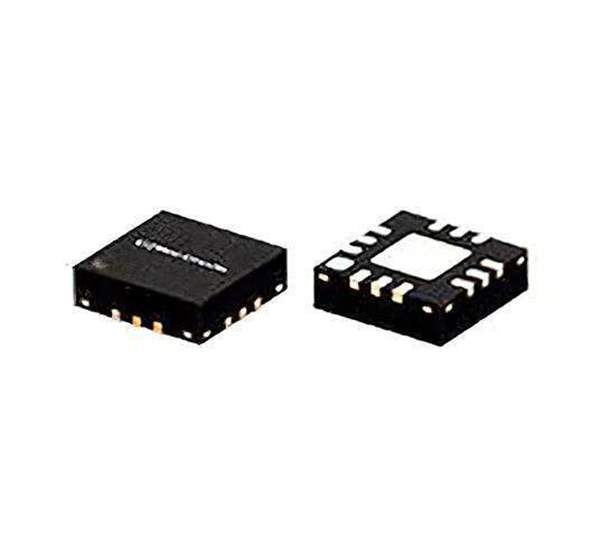

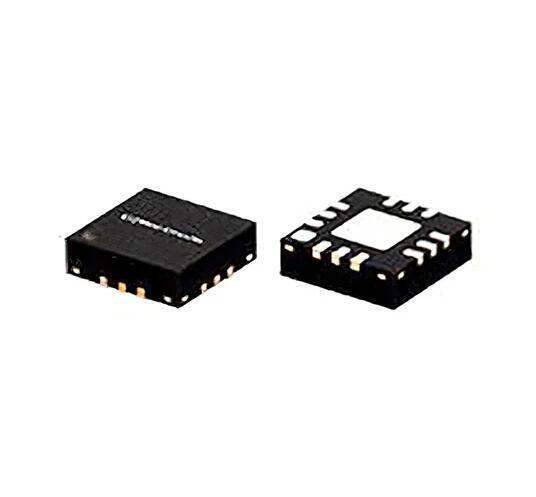

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 30MHz ~ 2GHz
P1dB 24.1dBm
Gain 21.6dB
Noise Figure 1.4dB
RF Type CATV, Cellular
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 139mA
Test Frequency 30MHz
Grade -
Mounting Type Surface Mount
Package / Case 12-VQFN Exposed Pad
Supplier Device Package 12-MCLP (3x3)
Ultra Librarian 3D Model Ultra Librarian TSS-23LN+ CAD Model

Description

TSS-23LN+ (RoHS compliant) is an advanced wideband amplifier with shutdown feature. It is fabricated using E-pHEMT technology and offers extremely high dynamic range over a broad frequency range and with low noise figure. In addition, the TSS-23LN+ has good input and output return loss over a broad frequency range. TSS-23LN+ is enclosed in a 3x3 mm, 12-lead MCLP package and has very good thermal performance.
