Same model may have multiple batches, images only for reference.

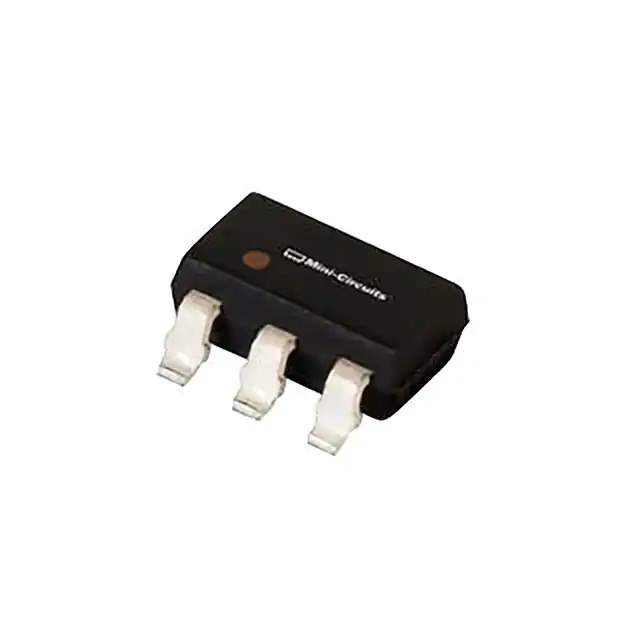

SP-2U1+ Real Image
Same model may have multiple batches, images only for reference.

SP-2U1+

Part No SP-2U1+
Manufacturer Mini-Circuits
Catalog RF Power Dividers/Splitters
Description RF PWR DVDR 2.3-2.5GHZ SOT23-6
Datasheet
SP-2U1+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Obsolete
Insertion Loss 0.5dB
Frequency 2.3 GHz ~ 2.5 GHz
Specifications Isolation (Min) 16dB, 1.35 VSWR (Max), 3° Imbalance (Max)
Size / Dimension 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm)
Package / Case SOT-23-6
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 727149-SP-2U1+
Ultra Librarian 3D Model Ultra Librarian SP-2U1+ CAD Model

Description

The Mini-Circuits 727149-SP-2U1+ is an RF and Wireless RF Power Divider/Splitter from Mini-Circuits.

  • Frequency Range: 2.3GHz to 2.5GHz
  • Dimensions: 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm)
  • Insertion Loss: 0.5dB
  • Isolation: 16dB (minimum)
  • Package: SOT-23-6
  • Standard Package: 500 pcs
  • Status: Obsolete
