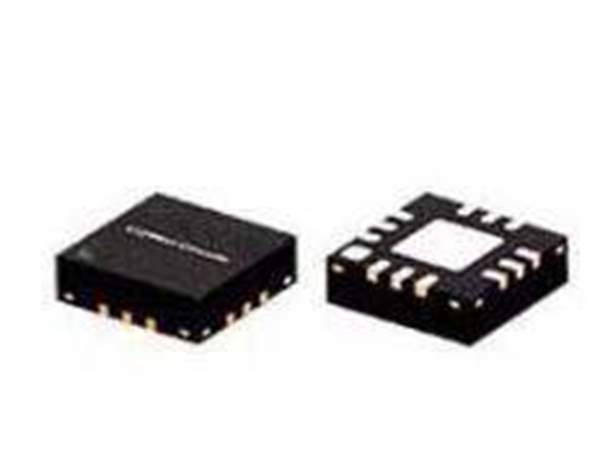

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Active
Frequency 400MHz ~ 8GHz
P1dB 27.8dBm
Gain 17.3dB
Noise Figure 3.3dB
RF Type EDGE, LTE, Radar, SATCOM, W-CDMA, WiFi, WLAN
Voltage - Supply 7.6V ~ 8.4V
Current - Supply 144mA
Test Frequency 2GHz
Grade -
Mounting Type Surface Mount
Package / Case 12-VQFN Exposed Pad
Supplier Device Package 12-MCLP (3x3)
Ultra Librarian 3D Model Ultra Librarian PMA3-83MP+ CAD Model

Description

The PMA3-83MP+ is a GaAs PHEMT based wideband, low noise MMIC amplifier with a unique combination of low noise, high IP3, and high output power, over a wideband making it ideal for sensitive, high-dynamic range receiver applications. This design operates on a single supply of +8V, is well matched for 50Ω and comes in a tiny, low profile package (3 x 3 mm-12 lead), accommodating dense circuit board layouts.
