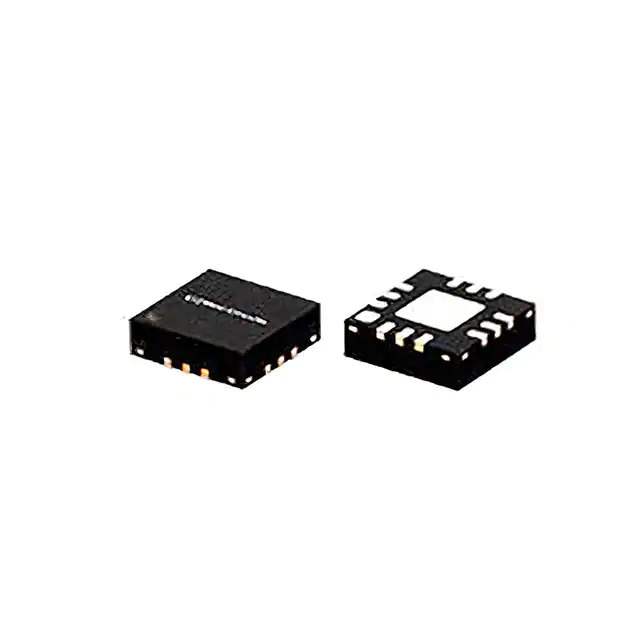

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 1.8GHz ~ 6GHz
P1dB 15.2dBm
Gain 26.9dB
Noise Figure 1.1dB
RF Type LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN
Voltage - Supply 5V
Current - Supply 69mA
Test Frequency 1.8GHz
Mounting Type Surface Mount
Package / Case 12-VQFN Exposed Pad
Supplier Device Package 12-MCLP (3x3)
Base Product Number PMA3
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 847540-PMA3-63GLN+
Ultra Librarian 3D Model Ultra Librarian PMA3-63GLN+ CAD Model

Description

The 847540-PMA3-63GLN+ is an RF Amplifier designed for use in RF and wireless systems such as LTE, radar, SATCOM, UMTS, WiFi, WiMAX, and WLAN from Mini-Circuits.

  • Frequency Range: 1.8GHz to 6GHz
  • Gain: 26.9dB
  • Noise Figure: 1.1dB
  • Current Supply: 69mA
  • Package: 12-VQFN exposed pad
  • Packaging: Tape and reel
  • Standard Package Quantity: 1,000 pcs
  • Status: Active
  • Applications: LTE, radar, SATCOM, UMTS, WiFi, WiMAX, WLAN
