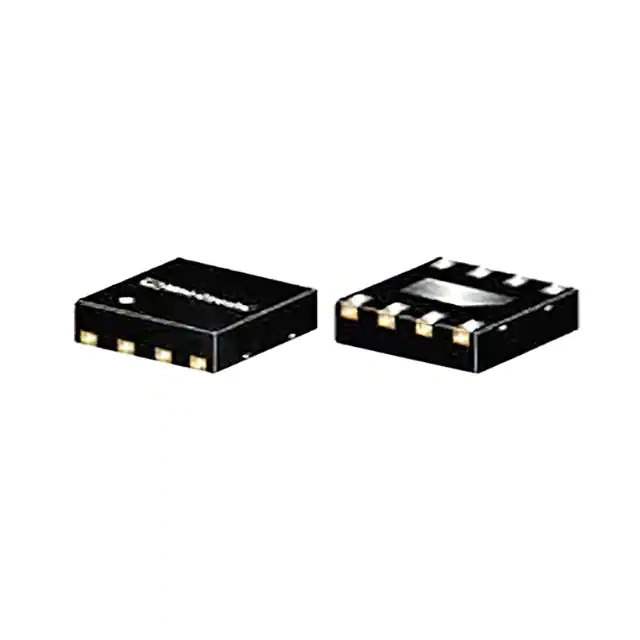

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 1.1GHz ~ 4GHz
P1dB 19.9dBm
Gain 12.9dB
Noise Figure 1.08dB
RF Type GPS, GSM, Radar, LTE
Voltage - Supply 5V
Current - Supply 51mA
Test Frequency 1.9GHz
Mounting Type Surface Mount
Package / Case 8-TFDFN Exposed Pad
Supplier Device Package MC1631-1
Base Product Number PMA2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 748310-PMA2-43LN+
Ultra Librarian 3D Model Ultra Librarian PMA2-43LN+ CAD Model

Description

The 748310-PMA2-43LN+ is an RF amplifier suitable for GPS, GSM, Radar, and LTE applications.

  • Applications: GPS, GSM, Radar, LTE
  • Test Frequency: 1.9GHz
  • Frequency Range: 1.1GHz to 4GHz
  • Gain: 12.9dB
  • Noise Figure: 1.08dB
  • Supply Voltage: 5V
  • Current: 51mA
  • P1dB: 19.9dBm
  • Package: 8-TFDFN exposed pad
  • Manufacturer: Mini-Circuits
  • Standard Package: 2,000 pcs
