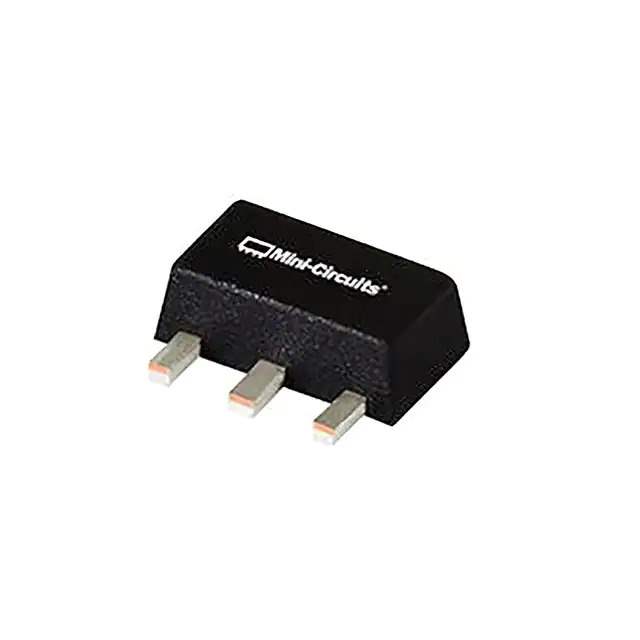

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 30MHz ~ 2GHz
P1dB 24.1dBm
Gain 18.9dB
Noise Figure 1.6dB
RF Type CATV, Cellular
Voltage - Supply 3V, 5V
Current - Supply 141.7mA
Test Frequency 500MHz
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 930346-PHA-23LN+
Ultra Librarian 3D Model Ultra Librarian PHA-23LN+ CAD Model

Description

The 930346-PHA-23LN+ is a RF amplifier designed for CATV and cellular applications.

  • Frequency Range: 30MHz to 2GHz
  • Gain: 18.9dB
  • Noise Figure: 1.6dB
  • Supply Voltage: 3V or 5V
  • Current Consumption: 141.7mA
  • Mounting: Surface mountable
  • Package: TO-243AA package
  • Supplier Device Package: SOT-89
