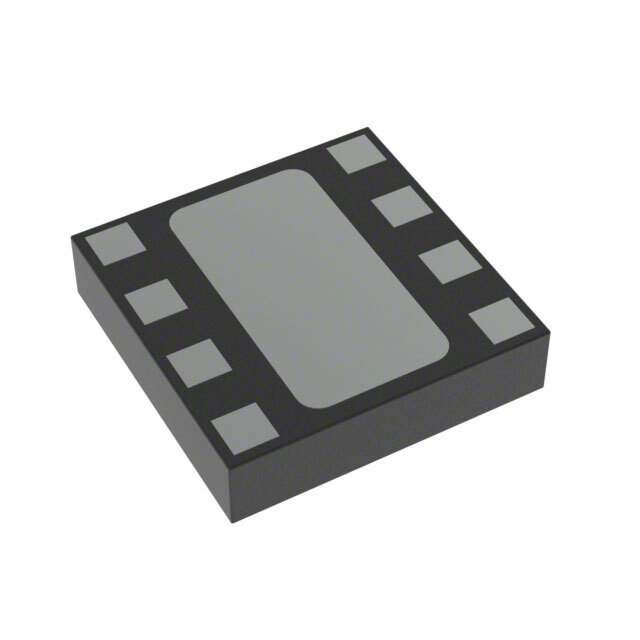

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 50MHz ~ 1.5GHz
P1dB 22.5dBm
Gain 25.4dB
Noise Figure 2dB
RF Type CATV
Voltage - Supply 4.8 V ~ 5.2 V
Current - Supply 146mA
Test Frequency 800MHz ~ 1.5GHz
Grade -
Mounting Type Surface Mount
Package / Case 8-TDFN Exposed Pad
Supplier Device Package 8-DFN (4.9x6)
Ultra Librarian 3D Model Ultra Librarian PHA-22+ CAD Model

Description

Mini-Circuits PHA-22+ is a dual matched wideband amplifier fabricated using advanced E-PHEMT* technology, offering high dynamic range (High IP3 and Low NF) for use in 50 and 75 ohm applications. Exceptionally high IP2 has been demonstrated in wideband 50 and 75 ohm amplifiers evaluation boards. Combining this with low noise figure to enable it for use in exceptionally high dynamic range amplifiers
