ON Semiconductor 74LVTH2245MTC Product Overview

The 74LVTH2245MTC from ON Semiconductor is a high-performance, non-inverting bus transceiver designed with low-voltage technology. It is part of the 74LVTH family, which is known for its low-voltage operation and high-speed interfacing capabilities. This particular device is specifically crafted to facilitate communication between data buses while ensuring signal integrity in a variety of applications.

Key Features

• Bi-Directional Interface: The 74LVTH2245MTC is capable of transmitting data in both directions, making it a versatile component for bidirectional communication between buses.
• Low-Voltage Operation: Operating at a voltage range of 2.7V to 3.6V, it is ideal for low-power applications and is compatible with 3.3V logic levels.
• High-Speed Data Transfer: With its ability to handle fast data transfer rates, this transceiver is suitable for high-speed data communication requirements.
• Bus Hold Feature: The device includes a bus hold feature that maintains the last active state of the bus if no new signal is present, reducing the need for external pull-up or pull-down resistors.
• Power-Off Protection: Inputs and outputs are designed to tolerate up to 5V, ensuring that the device is protected when it is powered off.
• Low Power Dissipation: The 74LVTH2245MTC boasts low power consumption, which is critical for energy-efficient designs.

Applications

The 74LVTH2245MTC is suitable for a wide range of applications that require reliable data transfer between different voltage domains. These include:

• Computers and Computer Peripherals
• Communication Devices
• Networking Equipment
• Data Storage Devices
• Industrial Control Systems

Package and Quality

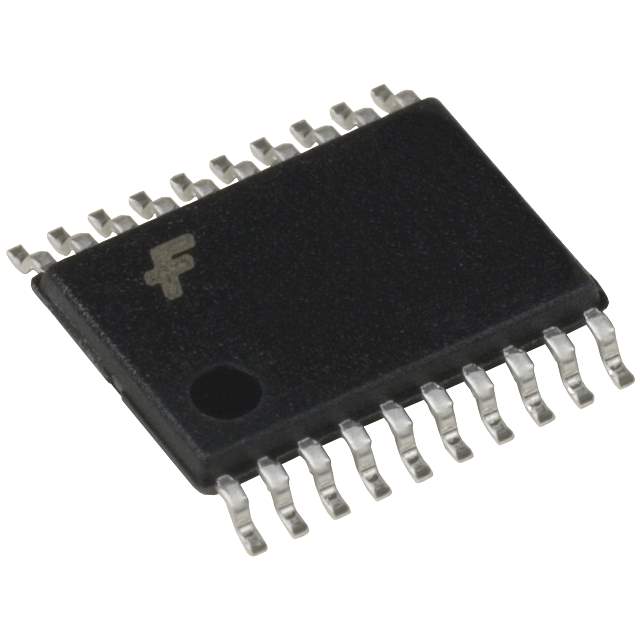

The device is offered in a TSSOP (Thin Shrink Small Outline Package) with 20 pins, providing a space-saving solution for PCB designs. ON Semiconductor is committed to high-quality standards, and the 74LVTH2245MTC is no exception, ensuring reliability and performance for critical applications.

With its robust feature set and ON Semiconductor's reputation for quality, the 74LVTH2245MTC is an excellent choice for designers looking to create efficient and high-speed data communication paths within their electronic systems.
