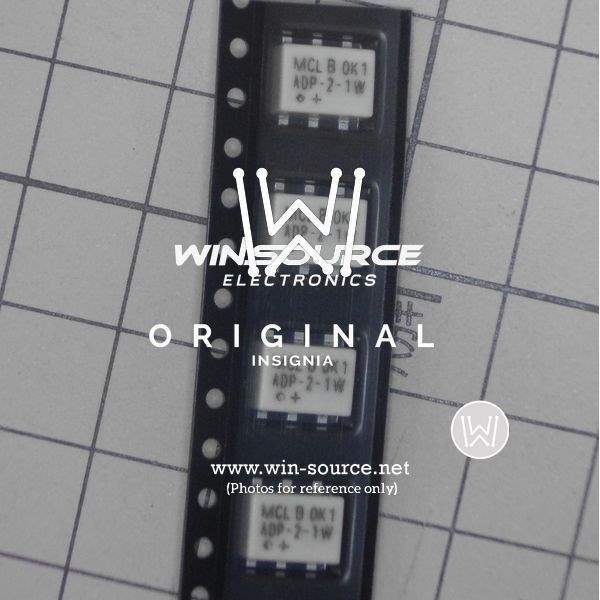

ADP-2-1W+ Mini-Circuits
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Insertion Loss 0.5dB
Frequency 1 MHz ~ 650 MHz
Specifications Isolation (Min) 20dB, 3° Imbalance (Max)
Size / Dimension 0.310" L x 0.220" W x 0.162" H (7.87mm x 5.58mm x 4.11mm)
Package / Case 6-SMD, Flat Leads
Base Product Number ADP-2
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.79.0000
Win Source Part Number 42867-ADP-2-1W+
Ultra Librarian 3D Model Ultra Librarian ADP-2-1W+ CAD Model

Description

ADP-2-1W+ Low Power RF Adapter

Featuring a robust design, the ADP-2-1W+ adapter brings reliable low-power transformation for RF devices. It is engineered to support various RF communications applications, focusing on space-saving and efficiency.

  • Applications:
    • Low-power RF communications
    • Signal Transformation
    • Impedance Matching
    • Wireless applications
  • Features & Benefits:
    • Compact and Lightweight
    • Excellent Insertion Loss
    • Broad Frequency Range
    • Enhanced Durability
  • Additional Details:

    The ADP-2-1W+ is ideal for developers looking to optimize their RF designs, offering a cost-effective solution without compromising on performance and size constraints.
