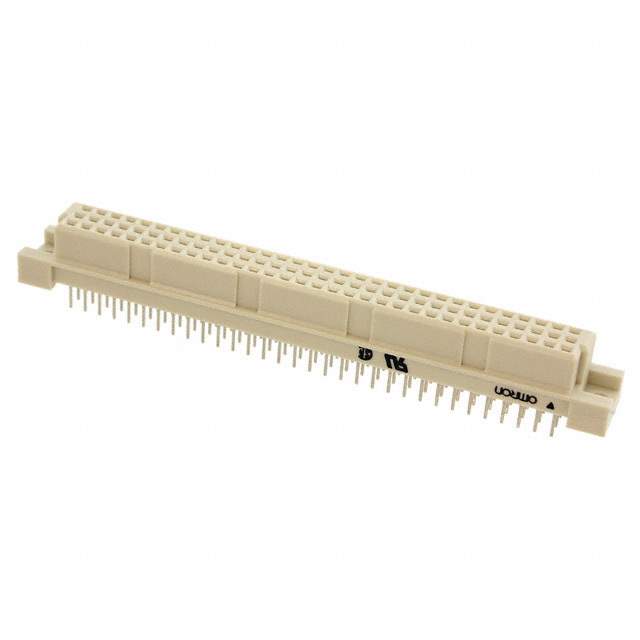

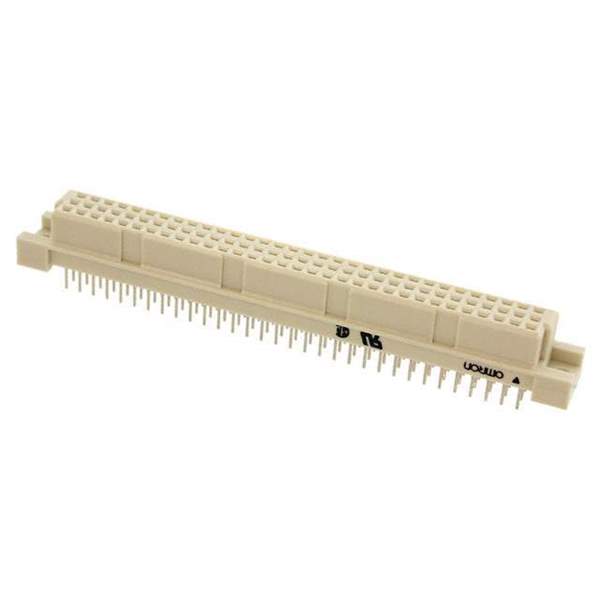

XC5D-4821 Real Image
Same model may have multiple batches, images only for reference.

XC5D-4821

Part No XC5D-4821
Manufacturer Omron
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB GOLD / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Omron Electronics Inc-EMC Div
Series XC5
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Base Product Number XC5D
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340807-XC5D-4821
Ultra Librarian 3D Model Ultra Librarian XC5D-4821 CAD Model

Description

The XC5D series is a receptacle backplane connector with 48 positions from Omron.

  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Sockets: Female
  • Loaded: All positions
  • Contact Finish: Gold with a thickness of 16.0µin (0.41µm)
  • Material: Polybutylene Terephthalate (PBT), glass-filled
  • Mounting Type: Through-hole
  • Operating Temperature Range: -55°C to 125°C
  • Application: Wide range of applications
