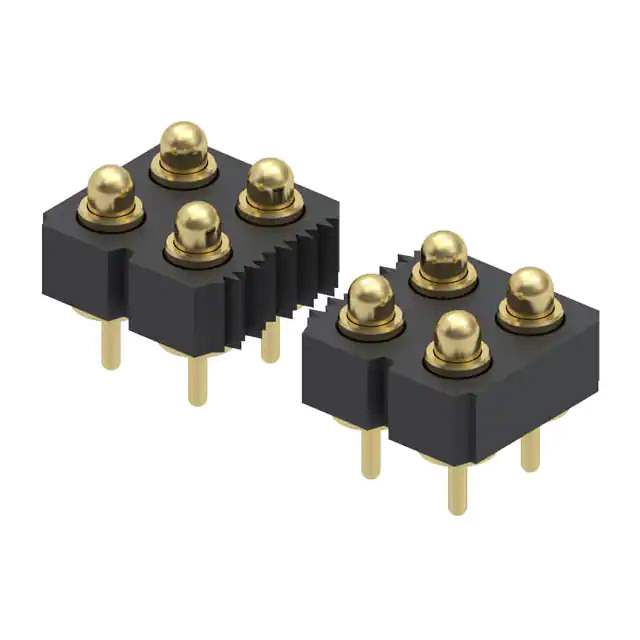

823-22-034-10-000101 Real Image
Same model may have multiple batches, images only for reference.

823-22-034-10-000101

Part No 823-22-034-10-000101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING PISTON 34POS PCB / 34 Position Spring Piston Connector Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Spring Loaded
Mfr Mill-Max Manufacturing Corp.
Series 823
Package Bulk
Connector Type Piston
Number of Contacts 34
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Through Hole
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 823-22
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349077-823-22-034-10-000101
Ultra Librarian 3D Model Ultra Librarian 823-22-034-10-000101 CAD Model

Description

The spring-loaded connector is from Mill-Max Manufacturing Corp. and is designed for use in rectangular connectors.

  • Connector Type: Piston
  • Number of Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Contact Material: Copper Alloy
  • Packaging: Bulk
  • Standard Package: 1
  • Mounting Type: Through Hole
  • ECCN: EAR99
