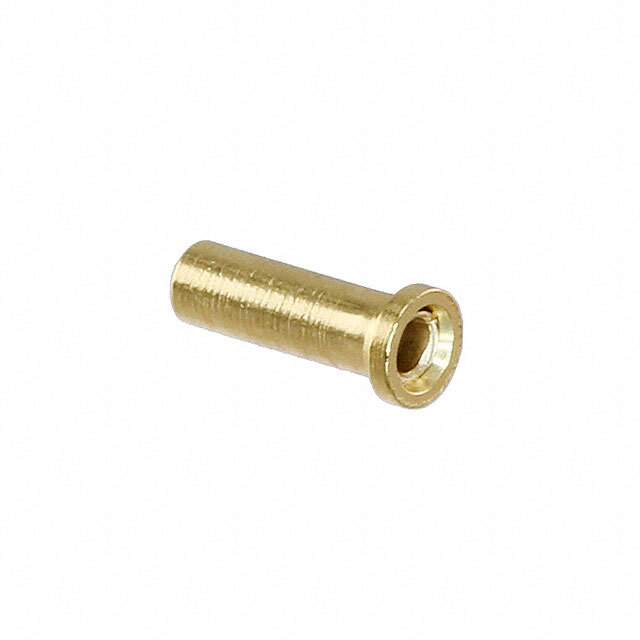

Same model may have multiple batches, images only for reference.

0552-1-15-15-21-27-10-0

Name: 0552-1-15-15-21-27-10-0
Brand: Mill-Max Manufacturing Corp.
SKU: 1338889
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	0552-1-15-15-21-27-10-0
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Terminals
Description	CONN PIN RCPT .015-.022 SOLDER / Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - PC Pin Receptacles, Socket Connectors
Mfr	Mill-Max Manufacturing Corp.
Series	0552
Package	Bulk
Tail Type	No Tail
Termination	Solder
Length - Overall	0.136" (3.45mm)
Accepts Pin Diameter	0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Pin Hole Diameter	0.031" (0.79mm)
Mounting Hole Diameter	0.040" (1.02mm)
Flange Diameter	0.055" (1.40mm)
Socket Depth	0.136" (3.45mm)
Contact Material	Beryllium Copper
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Temperature Range - Operating	-55°C ~ 125°C
Base Product Number	0552-1
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338889-0552-1-15-15-21-27-10-0
Ultra Librarian 3D Model	Ultra Librarian 0552-1-15-15-21-27-10-0 CAD Model

Alternative Products

Description

The 0552 series PC pin receptacle connector is perfect for through-hole mounting applications.

Termination Type: Through Hole
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Contact Material: Beryllium Copper
Temperature Range: -55°C to 125°C
Package: Bulk
Standard Package: 1000
