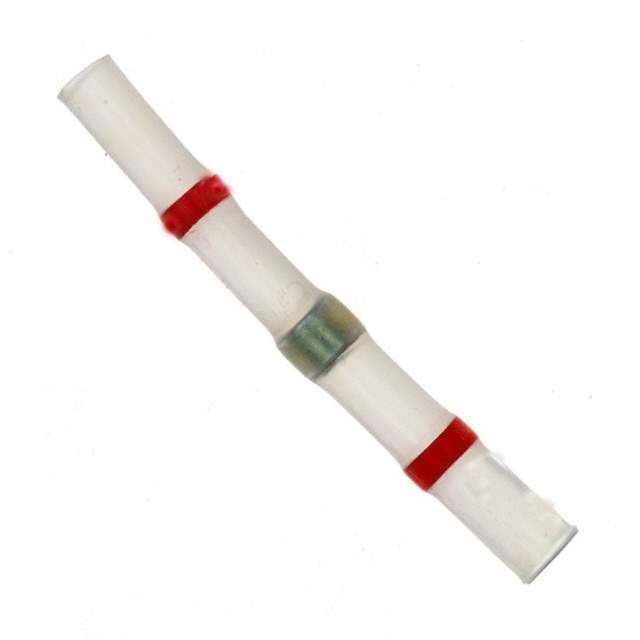

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires - Management>Solder Sleeve
Mfr TE Connectivity Raychem Cable Protection
Series SolderSleeve CWT, One-Step
Package Bulk
Type Wire to Wire
Diameter 0.105" (2.67mm)
Length 1.655" (42.04mm)
Color Clear
Base Product Number CWT
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 470037-000-ND,CWT9002,CWT9002-ND,470037-000
Standard Package 100
Win Source Part Number 1053759-CWT-9002
Ultra Librarian 3D Model Ultra Librarian CWT-9002 CAD Model

Description

The SolderSleeve CWT, One-Step CWT-9002 is a wire to wire solder sleeve that comes in a clear color. It is packaged in bulk and has a length of 1.655" (42.04mm). The standard package is 100 and the diameter is 0.105" (2.67mm). This product is an alternative part for RNF-100-3/8-2-FSP, TC-CAPS-4003-2, 4051444001, 1547294005, FIT-221-1/8-RD062470037-000, CWT 9002, CWT-9002., and CWT9002. The MSL level is 1 (Unlimited) and the REACH status is REACH affected. The HTSUS code for this product is 8536.90.4000.
