D8904

Part No D8904
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors

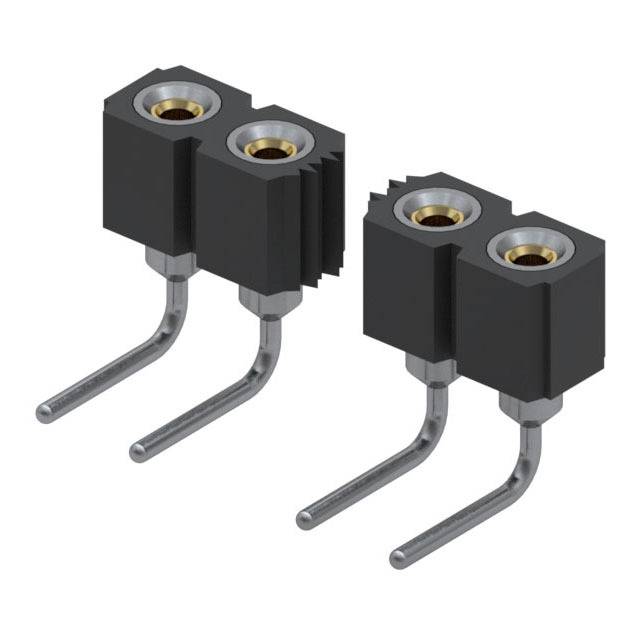

Description CONN SOCKET 4POS .100 R/ANGLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.126" (3.20mm)
Temperature Range - Operating -55°C to 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin-Lead
Current Rating 3A
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Contact Finish Thickness - Post 200μin (5.08μm)
Win Source Part Number 141443-D8904
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian D8904 CAD Model

Description

D8904 Electronic Component

The D8904 stands out for its superior functionality and ease of integration into existing circuits. Known for its efficient performance, it is highly recommended for projects demanding high precision.

Applications

  • Consumer electronics
  • Embedded systems
  • Digital audio processing

Features and Benefits

  • High precision and accuracy
  • Low power consumption
  • Easy integration with other electronic devices

Additional Details

With its advanced technology, the D8904 ensures seamless operation, reducing the need for frequent maintenance. It is an environmentally friendly component, designed to comply with current electronic waste standards.
