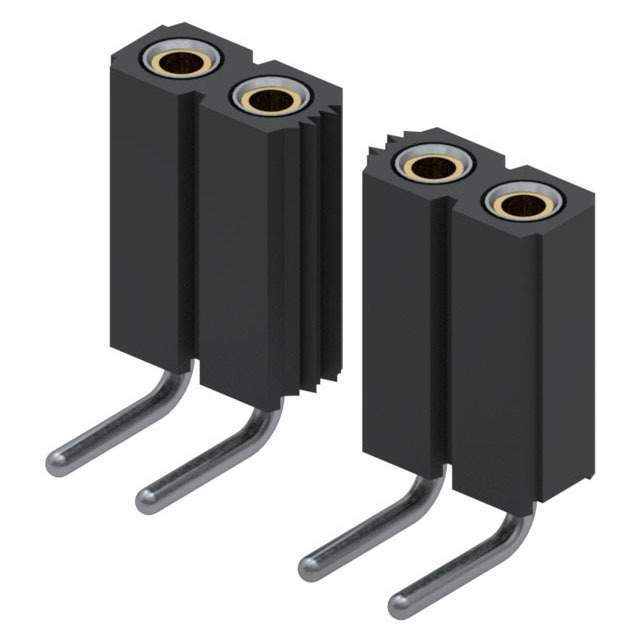

Same model may have multiple batches, images only for reference.

801-43-025-20-001000

Name: 801-43-025-20-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 763604
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	801-43-025-20-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN SOCKET 25PIN .100 RT ANGLE
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	801
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	25
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.100" (2.54mm)
Contact Length - Post	0.126" (3.20mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	4.5A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	763604-801-43-025-20-001000
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	801
Introduction Date	February 23, 2009
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 801-43-025-20-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 801 series connector is a board-to-board receptacle connector with a push-pull fastening type.

Positions: 25
Contact Material: Beryllium Copper
Voltage Rating: -
Current Rating: 4.5A
Temperature Range: -55°C to 125°C
Material Flammability Rating: UL94 V-0
Mounting: Through Hole, Right Angle
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold (30μin (0.76μm))
Contact Finish-Post: Tin (200μin (5.08μm))
