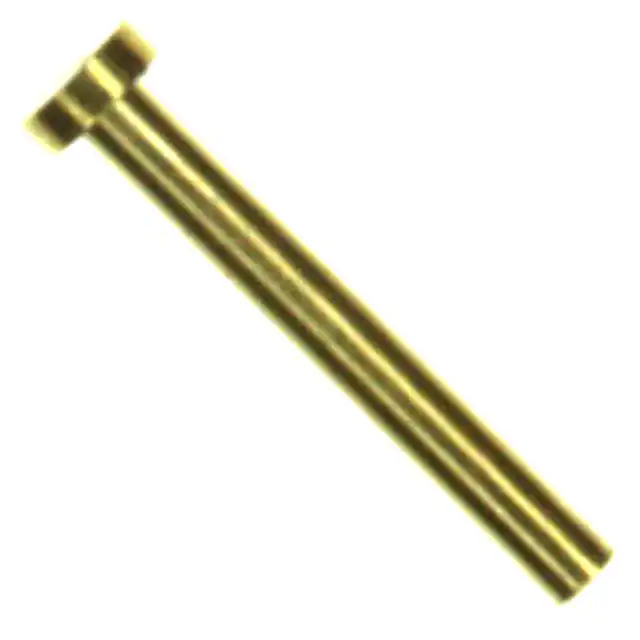

5063-0-00-15-00-00-33-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

5063-0-00-15-00-00-33-0

Part No 5063-0-00-15-00-00-33-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PC PIN CIRC 0.020DIA GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin, Single Post Connectors
Mfr Mill-Max Manufacturing Corp.
Series 5063
Package Bulk
Product Status Active
Terminal Type PC Pin
Terminal Style Single End, Nail Head
Pin Size - Above Flange 0.020" (0.51mm) Dia
Pin Size - Below Flange -
Length - Above Flange 0.160" (4.06mm)
Length - Below Flange -
Length - Overall 0.172" (4.37mm)
Flange Diameter 0.036" (0.91mm)
Mounting Hole Diameter 0.024" (0.61mm)
Mounting Type Through Hole
Termination Solder
Insulation Non-Insulated
Board Thickness -
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Material - Insulation -
Insulation Color -
Base Product Number 5063-0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377482-5063-0-00-15-00-00-33-0
Ultra Librarian 3D Model Ultra Librarian 5063-0-00-15-00-00-33-0 CAD Model

Description

The 5063 series PC pin single post connector, manufactured by Mill-Max Manufacturing Corp., is a reliable and versatile component for connectors and interconnects.

  • Packaging: Bulk
  • Status: Active
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Overall Length: 0.172" (4.37mm)
  • Mounting Type: Through Hole
  • Terminal Type: PC Pin
  • Contact Material: Brass Alloy
