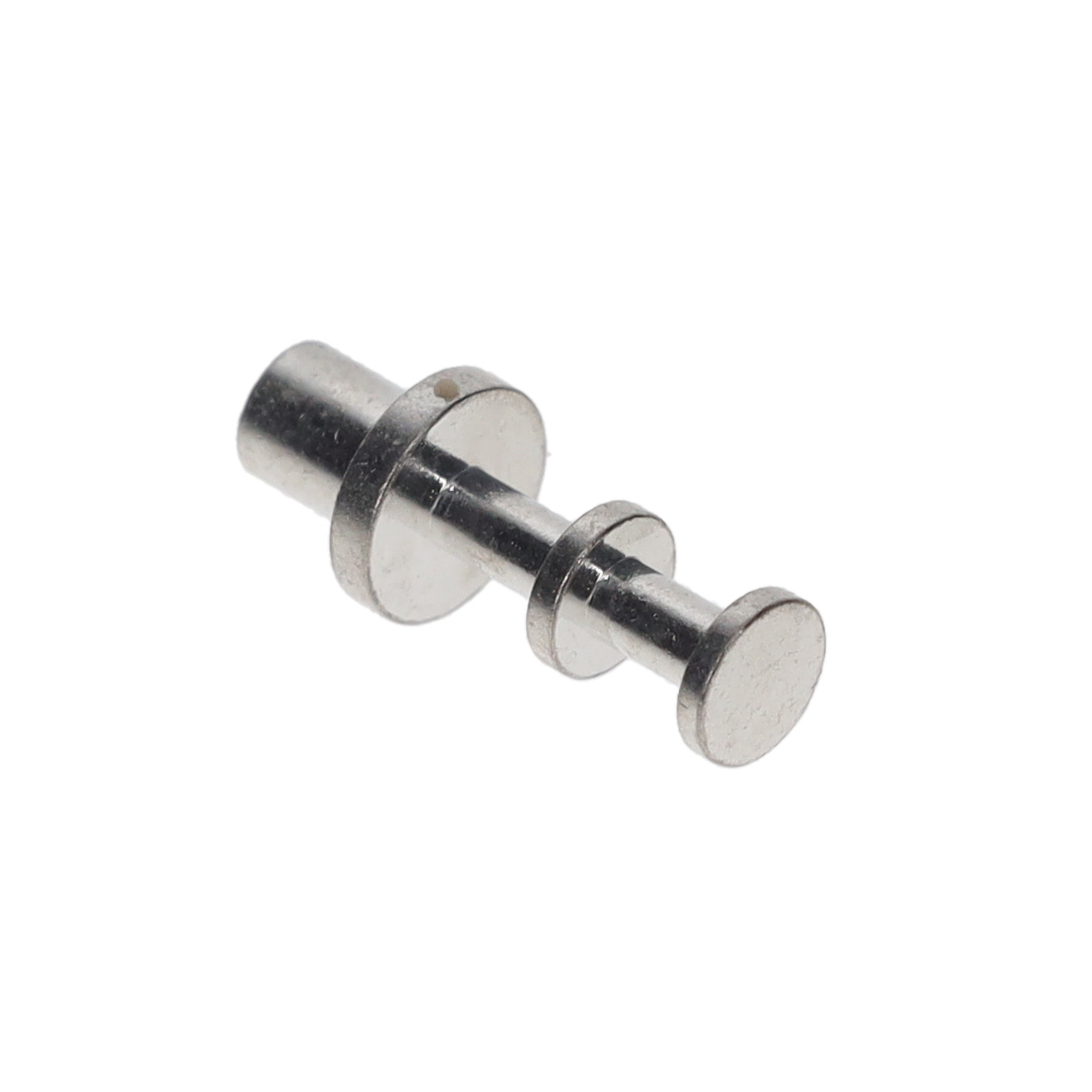

Same model may have multiple batches, images only for reference.
2307-3-00-50-00-00-07-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2307-3-00-50-00-00-07-0

Part No 2307-3-00-50-00-00-07-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description TERM TURRET DOUBLE L=4.72MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type Double End
Number of Turrets Single, Double
Length - Above Board 0.186" (4.72mm)
Length - Below Flange 0.195" (4.95mm)
Length - Overall 0.381" (9.68mm)
Mounting Type Through Hole
Termination Swage
Flange Diameter 0.094" (2.39mm)
Diameter - Turret Head 0.050" (1.27mm)
Staking Side OD 0.072" (1.83mm)
Mounting Hole Diameter 0.076" (1.93mm)
Board Thickness 0.094" (2.39mm)
Contact Material Brass Alloy
Contact Finish Tin-Lead
Contact Finish Thickness 300.0µin (7.62µm)
Insulation Non-Insulated
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629593-2307-3-00-50-00-00-07-0
Ultra Librarian 3D Model Ultra Librarian 2307-3-00-50-00-00-07-0 CAD Model
