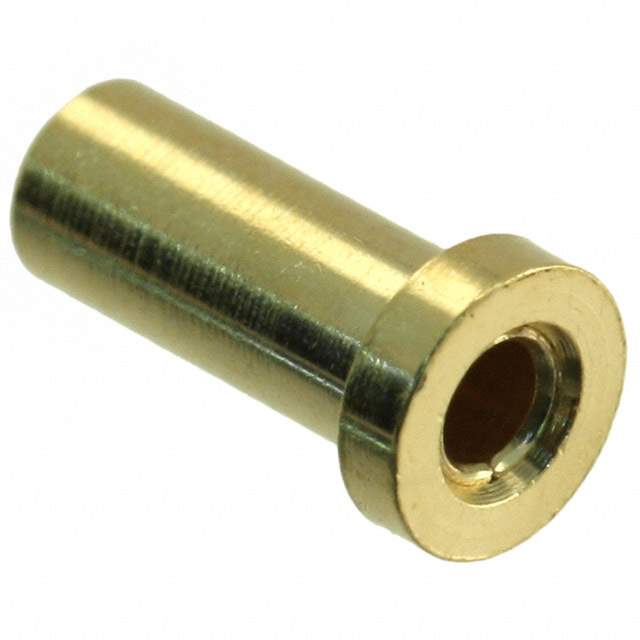

0340-0-15-15-34-27-10-0 Real Image
Same model may have multiple batches, images only for reference.

0340-0-15-15-34-27-10-0

Part No 0340-0-15-15-34-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .032-.046 SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 0340
Packaging Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.240" (6.10mm)
Accepts Pin Diameter 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Mounting Hole Diameter 0.087" (2.21mm)
Pin Hole Diameter 0.064" (1.63mm)
Flange Diameter 0.120" (3.05mm)
Socket Depth 0.200" (5.08mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 759959-0340-0-15-15-34-27-10-0
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name 340
Introduction Date December 21, 2007
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 0340-0-15-15-34-27-10-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 0340-0-15-15-15-34-27-10-0 is a connector used in electronic circuits manufactured by Mill-Max Manufacturing Corp.

  • Category: Connectors, Interconnects
  • Win Source Part Number: 759959-0340-0-15-15-34-27-10-0
  • Packaging: Bulk, 500 per package
  • Supply and Demand Status: Limited
