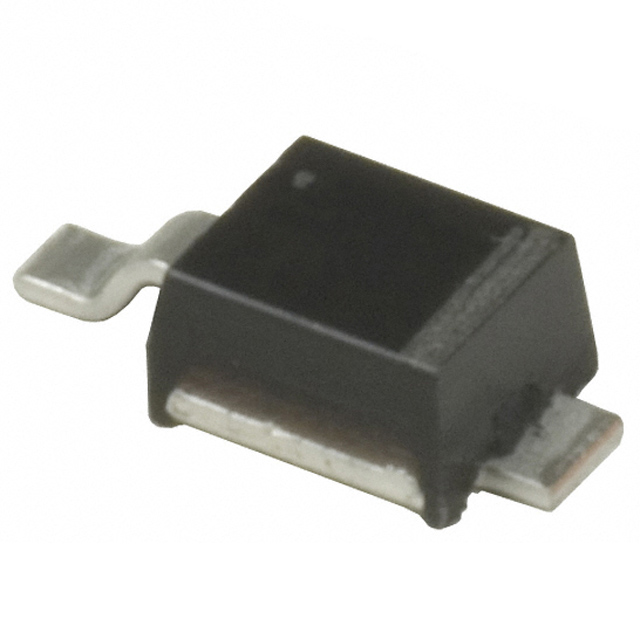

The UPT12E3/TR7 is a Transient Voltage Suppressor (TVS) diode manufactured by Microsemi Corporation. This device is specifically designed to protect sensitive electronic equipment from the damaging effects of voltage transients, such as those caused by electrostatic discharge (ESD), lightning strikes, and inductive switching. The UPT12E3/TR7 offers robust protection in a compact surface-mount package.

Applications

• Data Lines Protection
• I/O Interfaces Protection
• Signal Lines Protection
• Telecommunication Equipment
• Industrial Control Systems
• Consumer Electronics

Features

• Unidirectional TVS Diode
• Low Clamping Voltage
• Fast Response Time
• High Surge Capability
• Surface Mount Package

Benefits

• Enhanced System Reliability
• Protection Against Voltage Transients
• Reduced Downtime
• Improved Product Lifespan
• Cost-Effective Protection

Additional Details

The UPT12E3/TR7 is a surface-mount device provided in a small outline package (SOP). It features a peak pulse power dissipation to help prevent damage from voltage spikes. The low clamping voltage characteristic ensures that the voltage across the protected component remains within safe limits during transient events. The fast response time of the device ensures quick clamping of transient voltages, protecting downstream components. Its ability to handle high surge currents indicates its robustness and reliability in demanding applications. Specific electrical characteristics include reverse standoff voltage, breakdown voltage, and clamping voltage, all carefully selected for optimal protection performance. This device meets industry standards for transient voltage protection. The UPT12E3/TR7 is commonly utilized in applications requiring robust and reliable voltage surge protection. It's typically used in protection circuits in sensitive electronic devices. It is also RoHS compliant.
