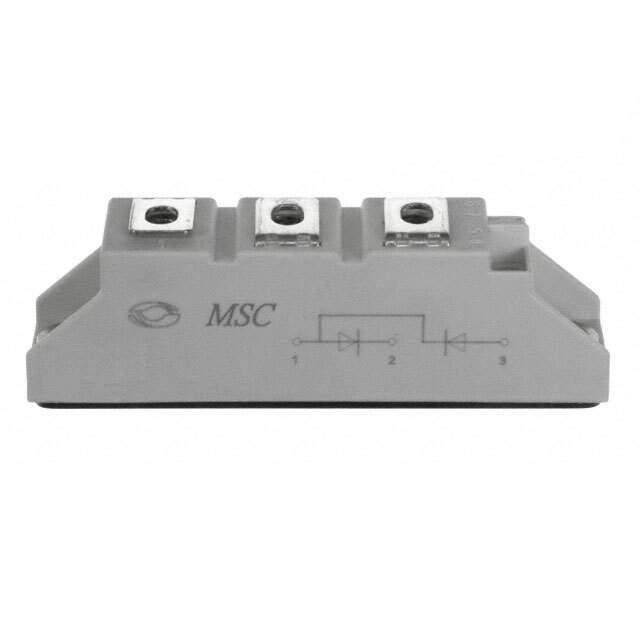

MSCD120-16 Real Image
Same model may have multiple batches, images only for reference.

MSCD120-16

Part No MSCD120-16
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 120A D1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Array 1 Pair Series Connection Standard 1600 V 120A Chassis Mount D1
Manufacturer Microsemi Corporation
Package Bulk
Part Status Obsolete
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Chassis Mount
Package D1
Case / Package D1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number MSCD120-16MP, MSCD120-16MP-ND, MSCD12016
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928162-MSCD120-16
Ultra Librarian 3D Model Ultra Librarian MSCD120-16 CAD Model

Description

The Microsemi Corporation diode array is a standard recovery component that is now obsolete.

  • Type: Diode Array, Standard Recovery
  • Configuration: 1 Pair Series
  • Voltage: Standard 1600 V
  • Current: 120A
  • Mounting: Chassis Mount D1
  • Speed: Greater than 500ns
  • Current (Io): 200mA
  • Category: Discrete Semiconductor Products
  • Package: Bulk
  • Quantity: 1
  • HTSUS: 8541.10.0080
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
