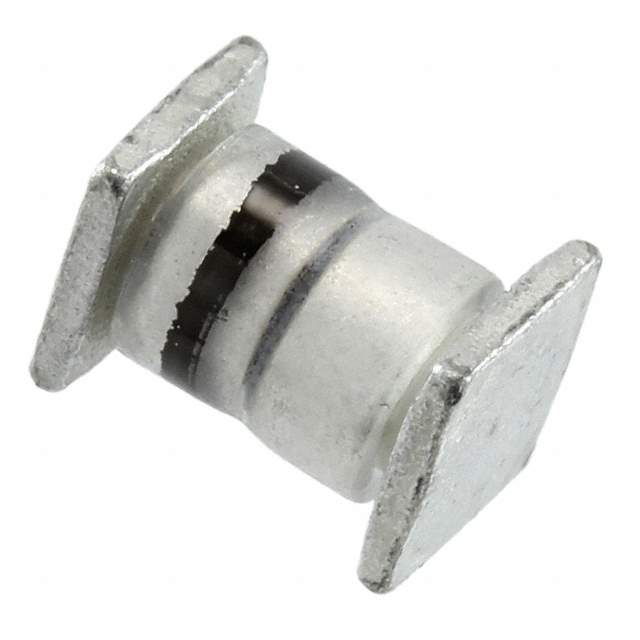

JANTX1N6642U Real Image
Same model may have multiple batches, images only for reference.

JANTX1N6642U

Part No JANTX1N6642U
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description SWITCHING DIODES | DIODE GEN PURP 75V 300MA D5B
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 75V
Current - Average Rectified (Io) 300mA
Voltage - Forward (Vf) (Maximum) at If 1.2V at 100mA
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 20ns
Current - Reverse Leakage at Vr 500nA at 75V
Capacitance at Vr, F 5pF at 0V, 1MHz
Mounting Style SMD
Manufacturer Package SQ-MELF, B
Supplier Device Package D-5B
Operating Temperature - Junction -65°C ~ 175°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191474-JANTX1N6642U
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N6642U CAD Model

Description

The Microsemi Corporation standard diode is a fast recovery diode with a maximum voltage of 75V and an average rectified current of 300mA. It is manufactured by Microsemi Corporation.

  • Maximum Voltage: 75V
  • Average Rectified Current: 300mA
  • Junction Temperature Range: -65°C to 175°C
  • Package: D-5B
  • Reverse Recovery Time: 20ns
  • Forward Voltage: 1.2V @ 100mA
  • Reverse Leakage Current: 500nA @ 75V
  • Capacitance @ Vr: 5pF @ 0V, 1MHz
  • Package Mounting Style: Surface-mount device
  • Manufacturer's Homepage: www.microsemi.com
