Same model may have multiple batches, images only for reference.

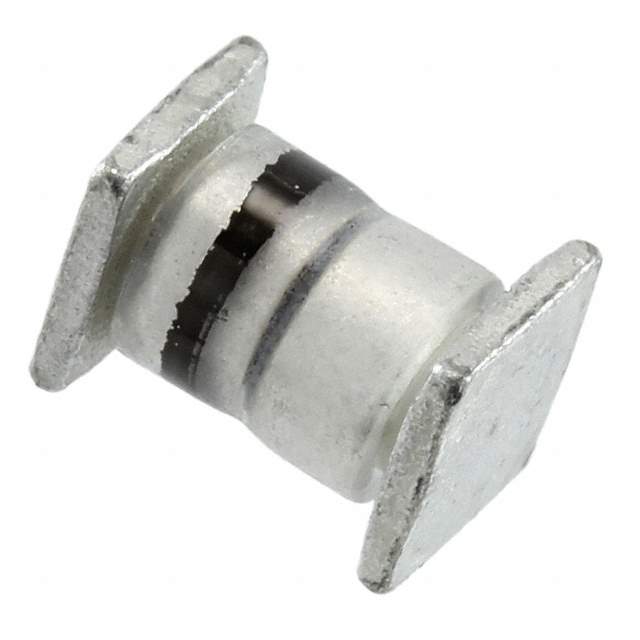

JANTX1N6630US Real Image
Same model may have multiple batches, images only for reference.

JANTX1N6630US

Part No JANTX1N6630US
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description ULTRA  FAST RECTIFIERS
Datasheet
JANTX1N6630US Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500/590
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 900V
Current - Average Rectified (Io) 1.4A
Voltage - Forward (Vf) (Maximum) @ If 1.4V @ 1.4A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 2μA @ 900V
Mounting SMD
Package SQ-MELF, E
Manufacturer Package D-5B
Operating Temperature - Junction -65°C ~ 150°C
Win Source Part Number 1191470-JANTX1N6630US
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name 1N6630US
Introduction Date December 09, 2004
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian JANTX1N6630US CAD Model

Description

The Microsemi Corporation 1N6630US is a fast recovery diode that can handle an average rectified current of 1.4A.

  • Average Rectified Current: 1.4A
  • Maximum Voltage: 900V
  • Reverse Recovery Time: 50ns
  • Package: SQ-MELF, E
  • Operating Temperature Range: -65°C to 150°C
  • Series: Military, MIL-PRF-19500/590
  • Compliance: Halogen-Free
  • Application: Discrete Semiconductor Products
