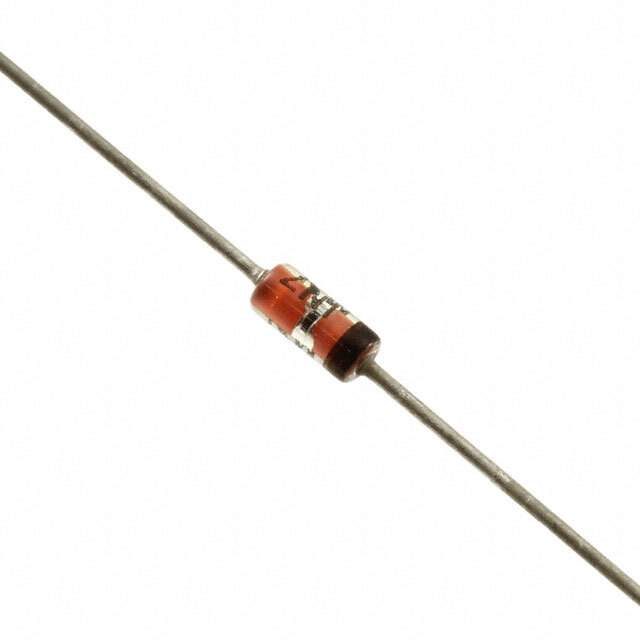

JANTX1N5523B-1

Name: JANTX1N5523B-1
Brand: Microsemi Corporation
SKU: 761166
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JANTX1N5523B-1
Manufacturer	Microsemi Corporation
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 5.1V 500MW DO35
Datasheet	JANTX1N5523B-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/437
Packaging	Bulk
Voltage - Zener (Nom) (Vz)	5.1V
Tolerance	±5%
Power - Max	500mW
Impedance (Maximum) (Zzt)	26 Ohm
Current - Reverse Leakage @ Vr	2μA @ 2.5V
Voltage - Forward (Vf) (Maximum) @ If	1.1V @ 200mA
Operating Temperature Range	-65°C ~ 175°C
Mounting Style	Through Hole
Package	DO-204AH, DO-35, Axial
Manufacturer Package	DO-35
Win Source Part Number	761166-JANTX1N5523B-1
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	1N5523B
Introduction Date	January 05, 2001
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian JANTX1N5523B-1 CAD Model

Alternative Products

Description

The Microsemi Corporation JANTX1N5523B-1 is a zener diode designed for use in electronic circuits.

Zener Voltage: 5.1V
Power Rating: 500mW
Tolerance: ±5%
Impedance: 26 Ohm
Package: DO-204AH, DO-35, Axial
Operating Temperature Range: -65°C to 175°C
