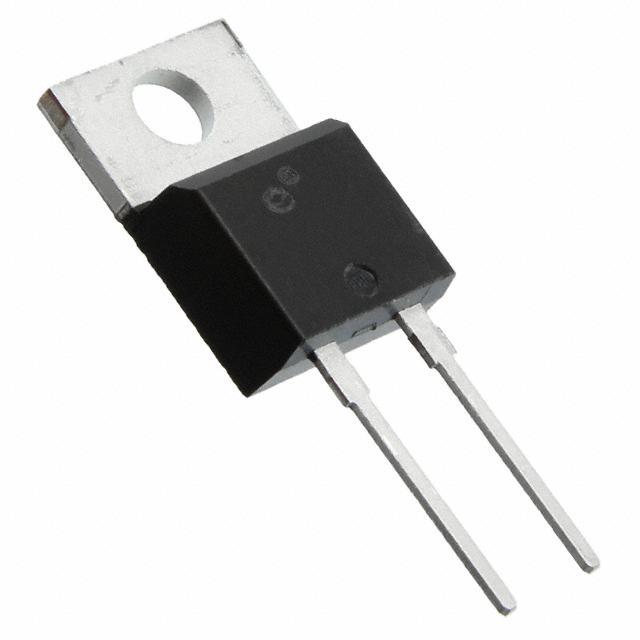

APT15D60KG Microsemi Corporation
Same model may have multiple batches, images only for reference.

APT15D60KG

Part No APT15D60KG
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 15A TO220
Datasheet
APT15D60KG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 80ns
Current - Reverse Leakage @ Vr 250μA @ 600V
Mounting Through Hole
Case / Package TO-220 [K]
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 078484-APT15D60KG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian APT15D60KG CAD Model

Description

Features and Benefits

  • Enhanced efficiency for energy-conscious applications
  • Thermal reliability under diverse operating conditions
  • Optimized for high current loads

Applications

Ideal applications for the APT15D60KG include:

  • Renewable energy converters
  • High-frequency SMPS
  • Power factor correction circuits
  • Electronic welding equipment

Additional Information

The APT15D60KG combines robust performance with precision, making it an ideal choice for industries seeking linearity and efficiency. Its design supports heavy-duty applications while maintaining optimal efficiency.
