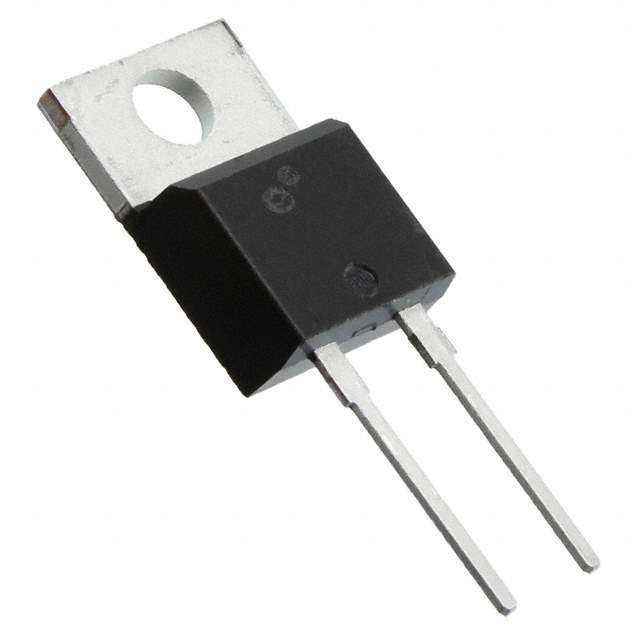

Same model may have multiple batches, images only for reference.

APT10SCD65K

Name: APT10SCD65K
Brand: Microsemi Corporation
SKU: 814279
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	APT10SCD65K
Manufacturer	Microsemi Corporation
Catalog	Diodes, Rectifiers - Single
Description	DIODE SILICON 650V 17A TO220
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Microsemi Corporation
Packaging	Bulk
Part Status	Obsolete (End Of Life)
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum)	650V
Current - Average Rectified (Io)	17A
Voltage - Forward (Vf) (Maximum) at If	1.8V at 10A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage at Vr	200μA at 650V
Capacitance at Vr, F	300pF at 1V, 1MHz
Mounting Style	Through Hole
Manufacturer Package	TO-220-2
Supplier Device Package	TO-220 [K]
Operating Temperature - Junction	-55°C ~ 150°C
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	814282-APT10SCD65K
Ultra Librarian 3D Model	Ultra Librarian APT10SCD65K CAD Model

Alternative Products

Description

The Microsemi Corporation APT10SCD65K is a silicon carbide Schottky diode designed for high-performance applications from Microsemi Corporation.

Maximum Voltage: 650V
Average Rectified Current: 17A
Reverse Recovery Time: 0ns
Mounting Type: Through-hole
Supplier Device Package: TO-220 [K]
Operating Temperature: -55°C to 150°C
Supply and Demand Status: Limited
