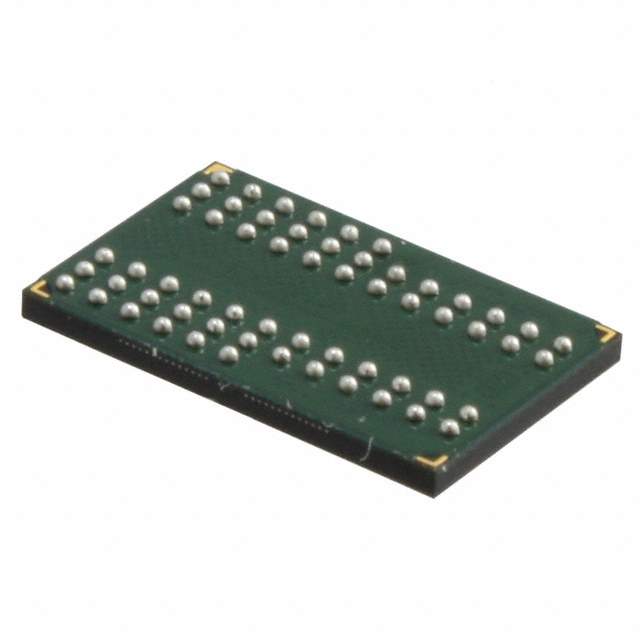

The MT46V32M16BN-6:F is a DDR SDRAM (Double Data Rate Synchronous Dynamic Random-Access Memory) component manufactured by Micron Technology Inc. This memory module is designed to provide high-speed data access and storage for a variety of applications. It is a key component in systems requiring substantial memory bandwidth.

Applications

• Desktop and Laptop Computers: As main system memory for running operating systems and applications.
• Graphics Cards: For storing textures and frame buffers in graphics processing units (GPUs).
• Servers: To handle larger datasets and support multiple users in server environments.
• Embedded Systems: In devices like routers, networking equipment, and industrial controllers.
• Gaming Consoles: To provide fast and efficient memory access for game data and rendering.

Features

• 32 Meg x 16 Configuration: Organized as 32 million words by 16 bits.
• DDR Technology: Offers higher bandwidth compared to standard SDRAM by transferring data on both the rising and falling edges of the clock signal.
• Data Rate: -6 signifies a specific data transfer rate; check the datasheet for the exact speed. This usually corresponds to speeds around 166MHz clock for 333MHz data rate.
• Low Power Consumption: Designed to operate at a lower voltage, which reduces power consumption.
• Differential Clock Inputs: Provides better noise immunity and timing accuracy.
• On-Chip DLL (Delay-Locked Loop): Ensures precise timing and synchronization of data transfers.
• Lead-Free Construction: Compliant with RoHS (Restriction of Hazardous Substances) directives.

Benefits

• Increased System Performance: The high data transfer rates of DDR SDRAM improve overall system performance.
• Reduced Power Consumption: Lower voltage operation leads to reduced power consumption and extends battery life in portable devices.
• Enhanced Reliability: Advanced features like differential clock inputs and on-chip DLL contribute to more reliable data transfers.
• High Capacity: 32 Meg x 16 configuration provides ample memory capacity for demanding applications.
• Improved Thermal Management: Lower power consumption results in less heat generation, which simplifies thermal management.

Additional Details

The MT46V32M16BN-6:F operates within a specific voltage range (typically 2.5V). It supports various DDR SDRAM features, including burst lengths of 2, 4, and 8. The specific timing parameters (CAS latency, RAS-to-CAS delay, etc.) are critical for proper operation and should be configured according to the manufacturer's specifications. Refer to the official Micron datasheet for detailed electrical characteristics, timing diagrams, and package information.
