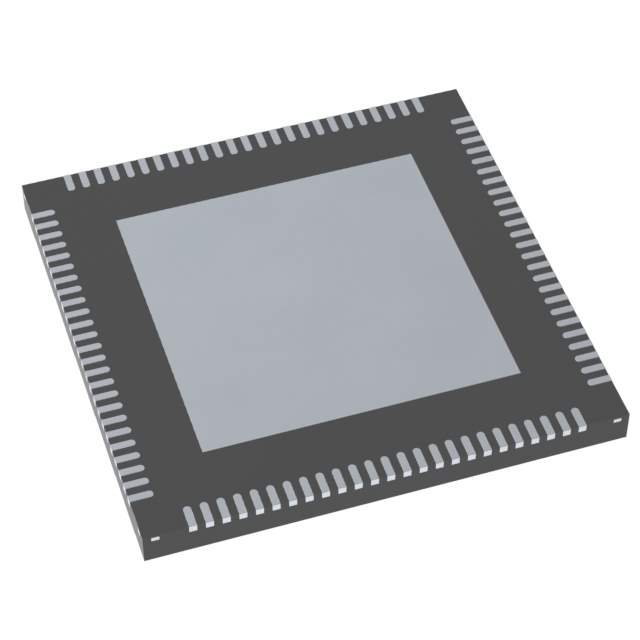

The USB7216T/KDX is a versatile and high-performance hub controller from Microchip Technology, designed to expand USB capabilities for a range of applications. This advanced hub controller is part of Microchip's extensive USB portfolio and is ideal for use in desktop and mobile PCs, docking stations, monitors, and embedded systems.
Key Features
- USB 3.1 Gen 1 Support: The device supports SuperSpeed USB 3.1 Gen 1 data rates up to 5 Gbps, enabling quick data transfer and efficient connectivity for multiple USB devices.
- Multiple Downstream Ports: It features seven downstream ports, providing ample expansion for additional USB peripherals.
- Two-lane Operation: The USB7216T/KDX can operate on one or two lanes (x1 or x2), offering flexibility in system design and bandwidth allocation.
- Power Management: Integrated features for link power management and port power control help to minimize power consumption, making it suitable for energy-conscious applications.
- Comprehensive Protection: The controller includes built-in protection against overcurrent, electrostatic discharge (ESD), and short circuit, ensuring robust operation and longevity of connected devices.
- Configurability: It comes with configurable vendor ID (VID), product ID (PID), device class, and other USB descriptors, allowing for customization to meet specific application requirements.
- USB-IF Compliance: The hub controller is compliant with USB Implementers Forum (USB-IF) standards, ensuring interoperability with a wide range of USB devices.
Applications
The USB7216T/KDX hub controller is an excellent choice for expanding USB connectivity in various environments. It can be integrated into:
- Desktop and laptop computers
- Docking stations and port replicators
- Monitors with USB hub capabilities
- Industrial control systems
- Automotive infotainment centers
- Embedded systems and IoT devices
With its advanced features and reliable performance, the USB7216T/KDX hub controller from Microchip Technology is a top-notch solution for creating efficient and powerful USB hubs in any modern digital ecosystem.
