Microchip Technology's USB2412-DZK-TR: A Compact USB 2.0 Hub Controller

The USB2412-DZK-TR from Microchip Technology is a versatile and efficient solution for expanding USB capabilities in various electronic devices. This hub controller is part of Microchip's family of USB 2.0 Hi-Speed Hub Controllers, designed to provide a seamless interface for connecting multiple USB devices to a single host controller. With its compact design and robust feature set, the USB2412-DZK-TR is an ideal component for embedded systems, docking stations, monitors, printers, and many other applications requiring USB connectivity.

Key Features and Benefits:

• Multi-Port Flexibility: The USB2412-DZK-TR supports up to two downstream ports, allowing for the connection of multiple peripherals with ease.
• High-Speed Data Transfer: As a USB 2.0 compliant device, it supports high-speed data transfer rates of up to 480 Mbps, ensuring quick and efficient data exchanges.
• Low-Power Operation: This hub controller is optimized for low-power consumption, making it suitable for battery-powered devices and applications where power efficiency is crucial.
• Port Over-Current Protection: Each downstream port is equipped with over-current protection, safeguarding connected devices from potential power surges.
• Plug-and-Play Functionality: The USB2412-DZK-TR supports hot-swapping and plug-and-play, which simplifies the user experience by allowing devices to be connected or disconnected without needing to power down the system.

Technical Specifications:

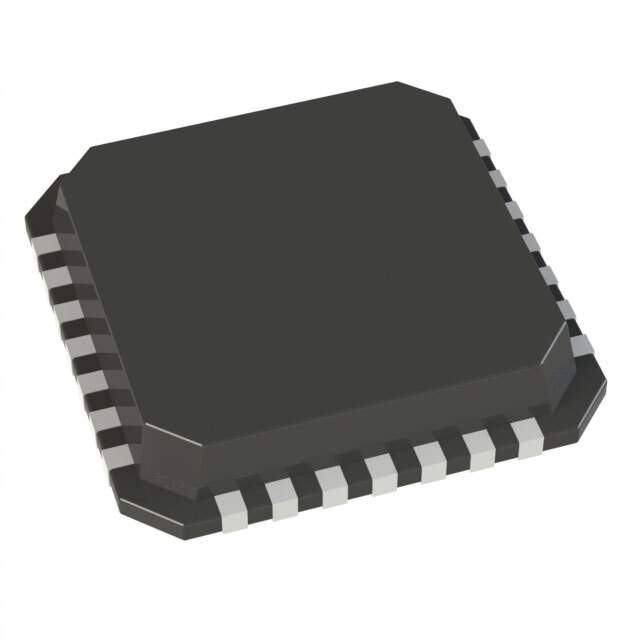

• Package: The device comes in a 36-VQFN (6x6 mm) package, offering a compact footprint for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range, making it suitable for harsh environment applications.
• Compliance: It is fully compliant with the USB 2.0 specification and backward compatible with USB 1.1, ensuring broad device compatibility.

The USB2412-DZK-TR is not only a testament to Microchip's commitment to quality and innovation but also an example of how technology can be designed to meet the ever-growing demands for connectivity in the modern world. Whether you're designing consumer electronics, industrial systems, or mobile accessories, the USB2412-DZK-TR offers a reliable and practical solution for expanding USB functionality.
