Microchip Technology's TC4422VAT - High-Speed MOSFET Driver

The TC4422VAT is a robust, high-speed MOSFET driver from the reputable Microchip Technology, designed to accommodate a broad range of power applications. This efficient and reliable component is engineered to convert TTL or CMOS input logic levels to a high-current drive signal for MOSFETs, ensuring optimal performance in high-speed switching applications.

With its high peak output current of 9A, the TC4422VAT is capable of driving the largest of MOSFETs, making it an ideal choice for power amplification and regulation tasks in a variety of electronic devices. This driver operates over a wide supply voltage range of 4.5V to 18V, providing designers with the flexibility to use it in various circuit configurations and ensuring compatibility with a wide range of control logic technologies.

The device boasts a fast rise and fall times of 30ns and 25ns respectively, at a 4.5V supply voltage. Such speed is critical for applications that require quick switching to minimize power loss and improve efficiency. The TC4422VAT's latch-up protection is further enhanced by its high latch-up current rating, ensuring device safety and reliability under extreme conditions.

Additionally, the TC4422VAT features a low shoot-through current, reducing the risk of damaging the MOSFETs it drives. Its robust design includes an input that can withstand negative swings of up to 5V, which helps in preventing damage from unexpected signal conditions. This makes the TC4422VAT not only powerful but also a resilient choice for demanding environments.

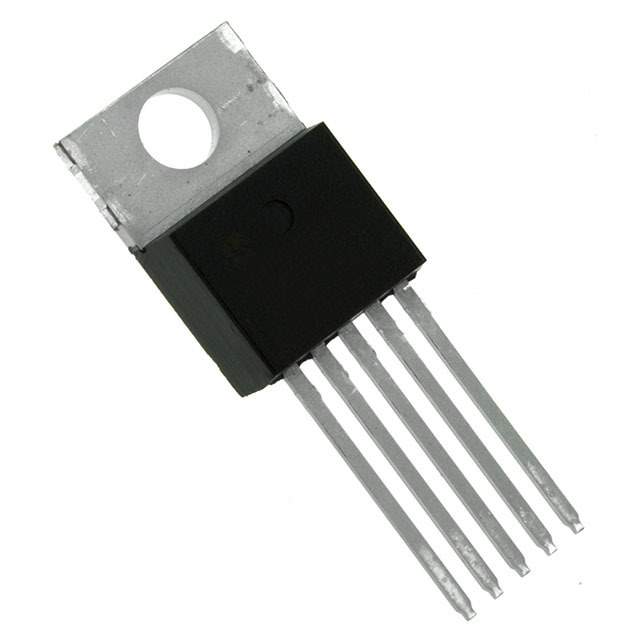

Encased in a thermally efficient 5-pin TO-220 package, the TC4422VAT dissipates heat effectively, maintaining stability and prolonging the life of the device. This package is also known for its ease of mounting and integration into various circuit boards, contributing to a simplified design and assembly process.

In summary, the Microchip Technology TC4422VAT is a high-performance, durable MOSFET driver that offers a combination of high-speed operation, robust output drive, and protection features. It is a versatile component that meets the stringent requirements of power management and control in modern electronic systems.
