Microchip Technology's SY89543LMG: A High-Performance Clock Distribution Solution

The SY89543LMG from Microchip Technology is a precision, low-jitter clock distribution device that is part of the renowned Precision Edge® product line. This advanced device is designed to meet the stringent requirements of high-speed communication systems, providing a reliable and efficient solution for clock distribution networks.

The SY89543LMG features a 2.5V, 2:1 differential multiplexer and a 1:4 differential fanout buffer, making it an ideal choice for applications that demand high-performance clock distribution. The multiplexer allows users to select between two LVPECL clock inputs, which is particularly useful in redundant clocking systems where high availability is critical.

With its capability to fan out four differential LVPECL outputs, the SY89543LMG ensures that multiple system components can be synchronized effectively. The outputs are guaranteed to be skew matched (within 20ps) and are capable of driving 50Ω transmission lines matched to VCC – 2V. This makes the device perfect for driving clocks across backplanes and into various logic families.

The performance of the SY89543LMG is further enhanced by its low propagation delay and additive phase jitter, which is typically below 1ps (RMS). This low level of jitter is critical in applications such as data centers, telecommunications, and networking equipment, where signal integrity and timing precision are paramount.

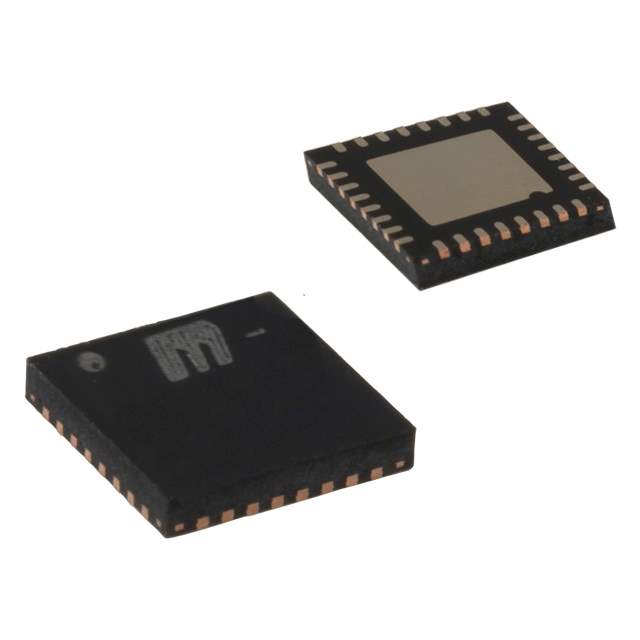

Housed in a compact 32-lead MLF® package, the SY89543LMG is designed for space-constrained applications. It also features fail-safe input protection, which ensures that the outputs are in a known state when inputs are undriven. This device operates over the industrial temperature range of -40°C to +85°C, offering reliable performance in a wide range of environmental conditions.

In summary, the SY89543LMG from Microchip Technology is a versatile, high-quality clock distribution solution that delivers exceptional performance for sophisticated electronic systems. Its combination of multiplexing and fanout capabilities, along with low jitter and skew, makes it an indispensable component for designers looking to optimize their clock distribution networks.
