The SY58040UMY from Microchip Technology is a high-performance, 2.5V / 3.3V 4:1 differential multiplexer with CML outputs, designed to meet the stringent requirements of high-speed data systems. This precision device is part of Microchip's family of Ultra Precision, Ultra High-Speed products that offer a significant advantage in terms of signal integrity and overall performance.

Key Features

• High-Speed Operation: The SY58040UMY is capable of handling data rates up to 3.2Gbps, making it ideal for applications that require fast data transmission, such as telecommunications, data communications, and automated test equipment.
• Low Jitter Performance: Designed to minimize signal distortion, the device offers exceptionally low jitter, ensuring reliable and accurate data transmission.
• Flexible Power Supply: It operates from either a 2.5V or 3.3V supply voltage, providing versatility in different system designs.
• Differential CML Outputs: The differential current-mode logic (CML) outputs provide high noise immunity and reduced electromagnetic interference (EMI), which is critical in high-speed signal environments.
• Internal Termination Resistors: The inclusion of 50Ω termination resistors on all differential inputs and outputs simplifies PCB design by reducing the number of external components required.

Applications

The SY58040UMY is suitable for a wide range of applications where high-speed data handling is essential. It is commonly used in:

• SONET/SDH/DWDM Systems
• Gigabit Ethernet and Fibre Channel Systems
• Backplane Data Transmission
• Automated Test Equipment (ATE)
• High-Speed Data Acquisition Systems

Product Specifications

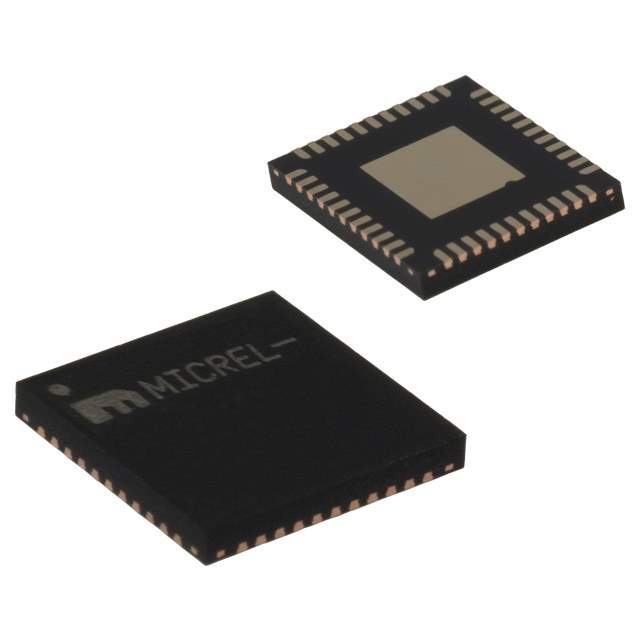

The SY58040UMY multiplexer is available in a 32-lead MLF® package, ensuring a compact footprint for space-constrained applications. It is characterized over the full industrial temperature range (-40°C to +85°C), accommodating a wide variety of environmental conditions.

Quality and Reliability

Microchip Technology is committed to delivering high-quality products. The SY58040UMY is built to meet the highest standards of reliability and performance, backed by Microchip's rigorous testing and quality assurance processes.
